I’ve turned down extra stainless-steel bag filter real estate quotes than I’ve approved.
Specifications lie usually.
Not because every supplier is deceitful, yet due to the fact that way too many RFQs are composed like wish list as opposed to design records: “SS housing, 5 micron, 2 inch flange, excellent cost,” which appears reliable up until the housing lands on-site, the cover weeps at 4 bar, the basket breaks down under differential pressure, and maintenance starts blaming the filter bag. That actually fell short there?
Normally, purchase did.
A stainless steel bag filter real estate is not simply a steel pot with a cover. It is a stress vessel, a contaminant-loading chamber, a seal user interface, a flow-control component, and– when utilized in food, beverage, pharmaceutical, chemical, plating, RO pretreatment, cooling down water, paint, material, or wastewater systems– a risk-transfer gadget. Acquire it severely and you acquire leaks, bypass, corrosion, bag rupture, downtime, and disagreements no one valued right into the quotation.
The pressure is increasing. In July 2023, the U.S. Geological Study approximated that at the very least 45% of U.S. faucet water might contain one or more PFAS compounds, based on screening for 32 PFAS kinds throughout public and exclusive products. That issues since upstream particulate control, carbon security, membrane pretreatment, and staged filtering are no more “great to have” attachments in water supply; they belong to the liability discussion.
And in April 2024, EPA completed nationwide drinking water restrictions for several PFAS compounds, including enforceable limitations of 4.0 ng/L, or 4 ppt, for PFOA and PFOS. The very same EPA statement estimated the guideline would certainly minimize PFAS direct exposure for about 100 million individuals over time.
So indeed, the stainless steel housing issues.

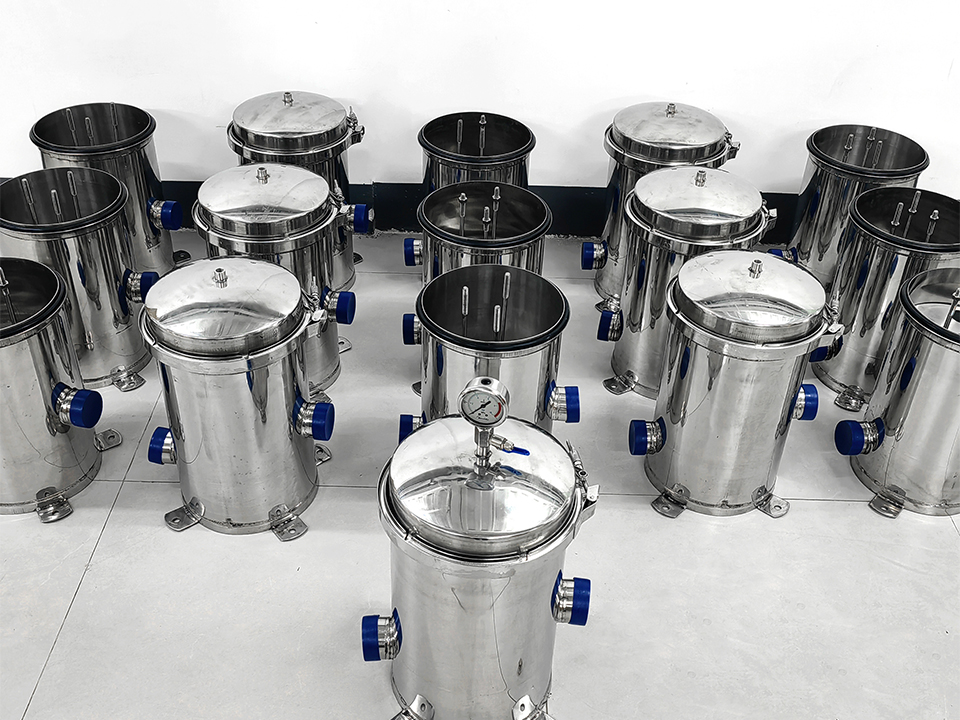

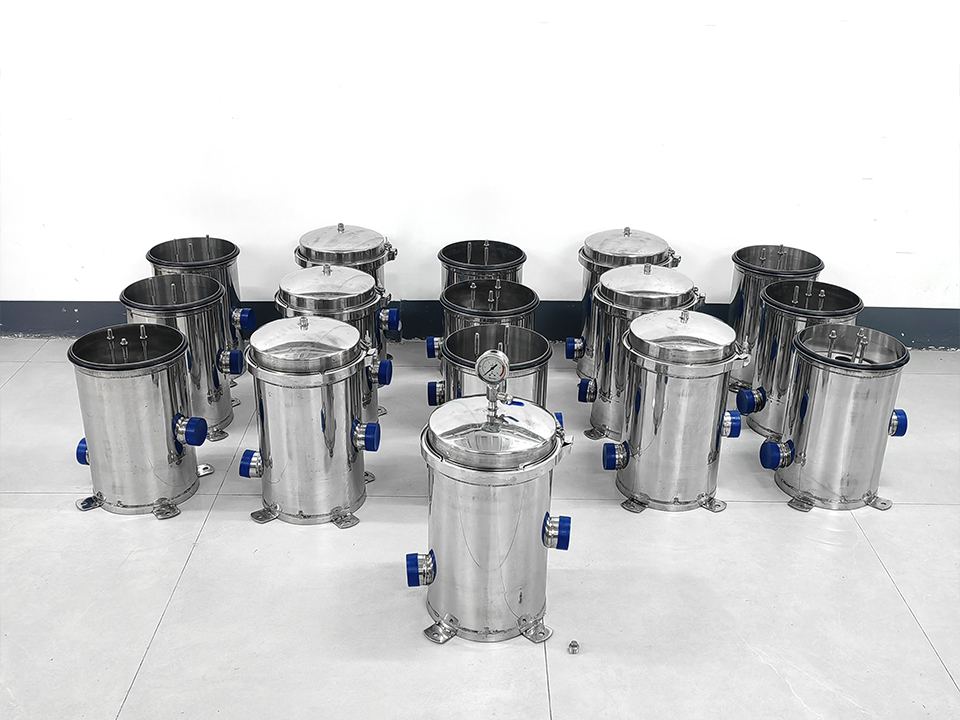

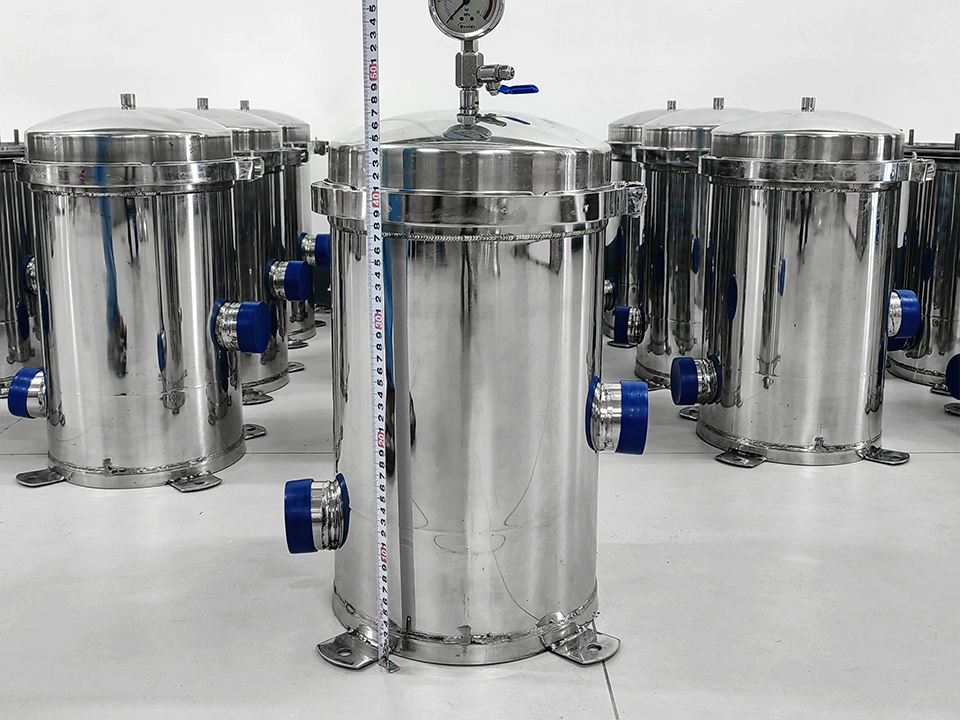

A stainless steel bag filter real estate holds a filter bag inside a pressure-rated metal vessel so liquid can go through the bag media while suspended solids are maintained prior to the liquid actions downstream. The housing provides stress control, sealing, circulation circulation, bag assistance, drain/vent access, and mechanical defense for the filtration process.
That definition appears dry. It should. A housing that tries to be exciting is probably concealing a weak basket.
In a basic industrial bag filter housing, dirty fluid gets in the covering, streams into the filter bag, passes through the bag wall, and departures through the outlet. The bag captures solids according to its micron rating. The housing itself does not create the micron rating; the bag does. That difference gets missed frequently, especially by buyers that request for “a 5 micron housing” rather than a housing fitted with a 5 micron bag.
For cartridge-based prefiltration, the same misunderstanding appears in smaller systems. A 5 micron PP water filter cartridge for purification has actually a specified media feature; the vessel only holds it under operating problems. Different equipment, same truth: media catches; housing contains.
I don’t rely on a bag filter housing requirements unless it names the fluid, temperature, stress, flow price, solids lots, rust danger, seal product, connection standard, cleansing technique, and changeout frequency.
That sounds extreme up until you price one unscheduled shutdown.
A lot of poor real estate purchases start with an incomplete table. The purchaser gets 3 quotes. One provider presumes water at ambient temperature. An additional thinks light chemical service. A 3rd quotes a thinner shell, cheaper clamp, low-grade gasket, and optimistic pressure rating. The cheapest one wins due to the fact that nobody forced all three suppliers into the exact same technical box.
Then the plant pays two times.
Here is what a severe RFQ needs to consist of:
| Spec Thing | What to Demand | Why It Issues |
|---|---|---|
| Housing product | SS 304, SS 316, or SS 316L | Figures out deterioration resistance and chemical resistance |
| Style stress | Typically 6 bar, 10 bar, or customized | Need to exceed real operating and surge stress |
| Operating temperature level | Regular and peak temperature | Impacts gasket choice and seal life |
| Circulation price | m FOUR/ h, L/min, or GPM | Prevents undersizing and high differential pressure |
| Bag size | Dimension # 1, # 2, # 3, # 4, or customized | Controls dirt-holding capability and changeout interval |
| Micron rating | Small or outright bag rating | Identifies particle capture performance |
| Seal product | EPDM, NBR, Viton/FKM, PTFE | Must match chemical and temperature exposure |
| Closure kind | Swing bolt, clamp, quick-open, V-band | Influences security, maintenance time, and cost |
| Inlet/outlet | BSP, NPT, flange, tri-clamp, HUBBUB, ANSI | Avoids installation inequality |
| End up | Polished, bead-blasted, pickled/passivated | Effects hygiene, rust, and cleanability |
| Devices | Vent, drain, gauge ports, legs, coat | Decreases field adjustment and leak factors |
The tough fact: if your RFQ does not include half this table, you are not buying a real estate. You are wagering with stainless steel.
SS 304 bag filter housing is usually acceptable for tidy water, low-chloride liquids, general commercial filtration, and moderate-duty service where chemical direct exposure is foreseeable. SS 316 bag filter real estate is much better matched for greater chloride exposure, saltwater-adjacent settings, aggressive cleansing chemicals, food and beverage systems, and chemical processing where rust margin issues.
Here is my blunt opinion: SS 304 is excessive used due to the fact that it makes quotations look attractive. SS 316 is underused since failing costs are hidden in one more department’s budget plan.
SS 304 includes chromium and nickel, giving it good basic deterioration resistance. SS 316 adds molybdenum, which enhances resistance versus pitting and gap deterioration, specifically in chloride-bearing fluids. If you are filtering system seawater, salt water, particular process chemicals, wastewater, CIP liquids, or anything with unclear chloride concentration, SS 316 is not high-end costs. It is adult guidance.
Food-contact systems bring another layer. United state federal food devices regulations need food-contact surfaces to be corrosion-resistant, constructed from harmless materials, and able to stand up to the desired environment, cleaning compounds, and sanitizing agents. That is not a marketing expression; it is created into federal guideline.
Now ask the unpleasant concern: if your filter housing sees warm alkaline cleaner, acidic rinse, chloride, pressure cycling, and daily opening, why are you still dealing with 304 and 316 as interchangeable?
Bag filter housing micron ranking is technically the micron score of the mounted filter bag, not the stainless steel real estate itself. A housing may approve 1 micron, 5 micron, 10 micron, 25 micron, 50 micron, 100 micron, or 200 micron bags, yet the actual retention relies on bag material, construction, small versus outright score, flow velocity, solids form, and stress differential.
This is where sales pamphlets get slippery.
A small 5 micron bag might record a high portion of 5 micron bits, however not all of them. An absolute-rated bag is tighter, much more pricey, and often develops greater differential stress. Felt bags act in a different way from mesh bags. Polypropylene acts in different ways from polyester. Oil behaves differently from water. Warm caustic acts in different ways from cooling down tower makeup.
No magic here.
If the system requires organized filtering, do not require one bag to do everything. Utilize a coarser upstream filter, after that a finer polishing phase. In RO pretreatment, for instance, numerous developers still rely upon cartridge stages after bigger particulate elimination. A 5 micron PP carbon cartridge for reverse osmosis water filter systems is a various tool than a bag filter, yet the sequencing logic recognizes: safeguard the pricey downstream part.
Circulation price makes a decision whether your commercial bag filter housing behaves like a filter or like a pressure-drop generator.
I have seen purchasers choose a single-bag real estate because the pipe size matched. Incorrect metric. Pipeline dimension is not filtering capacity. A DN50 inlet does not indicate the housing can conveniently process every DN50 flow circumstance, specifically when solids packing is high or the bag is fine-rated.
A practical spec should include typical flow, height circulation, viscosity, solids focus, target changeout period, and acceptable differential pressure. Without those worths, sizing comes to be theater.
For low-viscosity water, a Dimension # 2 bag housing is typically used because it provides higher surface and dirt-holding capacity than smaller sized bags. But in material, paint, edible oil, layering solution, coolant, or high-solids wastewater, the same real estate may blind faster than anticipated. More area aids, yet it does not repeal physics.
If your water resource is unsteady– river, sea, well, construction overflow, procedure reuse water– pretreatment lots swings can be violent. That is where high-capacity prefilter stages such as a high circulation big slim PP filter cartridge for waste, river, sea, and well water pre-filtering might sit beside or downstream of bag filtering in a wider system layout.

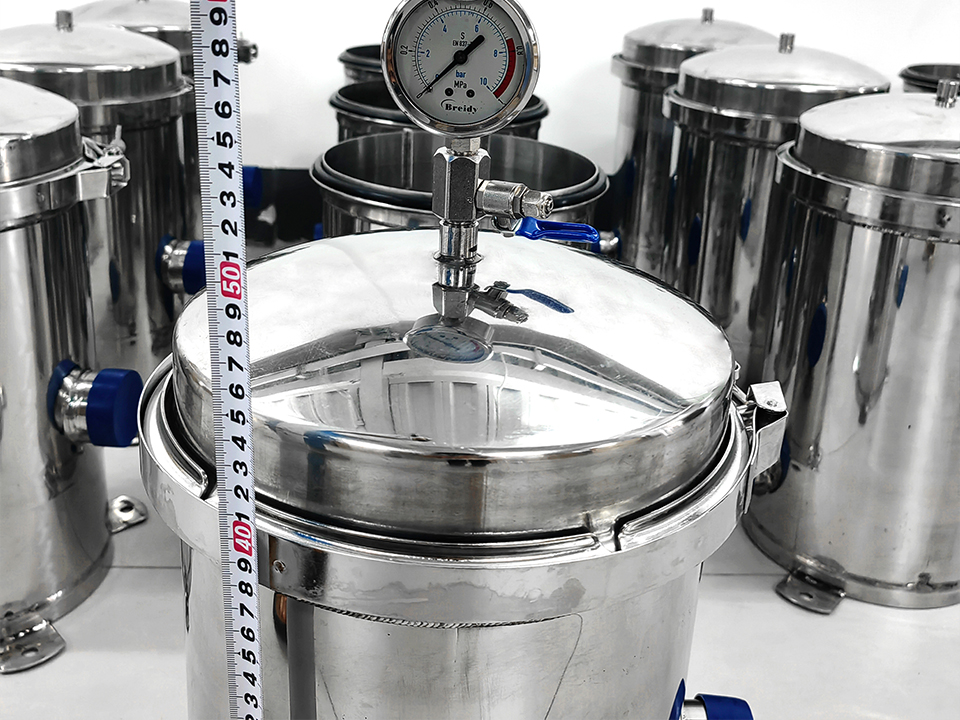

A stainless-steel filter housing pressure ranking is not simply the number printed on the nameplate. It is the partnership between shell density, weld high quality, closure layout, gasket compression, venting method, pressure spikes, temperature level, and driver habits during bag changeout.
Inexpensive housings generally reveal themselves at the cover.
The swing bolts feel slim. The gasket groove is shallow. The cover bends. The basket fit is sloppy. The welds look cosmetic rather than architectural. The vent is dealt with as a device rather than a security function. And nobody wishes to state the obvious: if the driver has to fight the cover each day, the housing is severely designed.
Usual closure types consist of:
| Closure Type | Best Use | Powerlessness |
|---|---|---|
| Swing bolt closure | Medium/high pressure industrial use | Slower opening, more hands-on handling |
| Secure closure | Lower-pressure, quick-access systems | Secure top quality and gasket seats matter |
| Quick-open closure | Constant bag changeouts | Higher cost, should be engineered very carefully |
| V-band closure | Portable sanitary or light-duty applications | Not suitable for every stress array |
Never treat venting as optional. A housing should be depressurized before opening up. That appears obvious, yet the industry’s injury history is built on “evident” actions avoided under production stress.
The gasket is the least expensive component of the real estate and usually the very first part to wreck the job.
EPDM works well in several water and moderate chemical applications, yet it is not universal. NBR prevails for oils and fuels. Viton/FKM deals with several aggressive chemicals and greater temperatures, though it sets you back more. PTFE uses wide chemical resistance however behaves in different ways under compression and may not seal forgivingly in every groove style.
The incorrect gasket does not always stop working considerably. Often it swells. In some cases it solidifies. Occasionally it takes a compression collection and starts weeping after the third bag change. Often it contaminates the process. Often it passes the factory hydrotest and fails only after actual chemistry shows up.
That is the vendor technique: testing with clean water does not confirm compatibility with your process fluid.
Surface finish is not vanity. In sanitary, drink, pharmaceutical-adjacent, or high-purity water systems, weld shade, interior roughness, hole geometry, dead legs, and passivation influence cleanability and corrosion resistance.
A polished stainless steel filter housing is easier to tidy than a rough indoor shell. A correctly passivated surface area resists deterioration much better than a heat-tinted weld area left untreated. A gap around a basket seat can gather solids and biological development. A drainpipe that never ever completely drains pipes ends up being a microbial pocket or chemical catch.
And of course, I recognize some customers state, “It’s simply commercial water.”
Penalty. But say that after you gauge chloride, temperature, pH, oxidizers, and microbial risk– not before.
The basket is not attractive. It sustains the bag against circulation and differential stress.
A weak basket can warp. A poor basket fit allows bypass. A sharp side can reduce bags. Poor opening style can develop uneven loading. A missing out on hold-down ring can allow the bag lift or collapse during circulation changes.
Usual bag sizes differ by provider, yet industrial systems commonly make use of larger bags for higher dirt-holding capacity and less changeouts. Smaller housings fit compact systems, pilot plants, low-flow chemical application lines, laboratory processes, and point-of-use protection. Large multi-bag housings serve higher circulation industrial lines where one bag would blind as well quickly.
If your solids lots is high, do not ask just, “What micron?” Ask, “The amount of kilograms of solids can this system hold prior to differential pressure comes to be inappropriate?” That inquiry alters the acquisition.
To choose a stainless-steel bag filter housing, match the real estate material, pressure rating, flow capacity, seal product, bag size, micron score, link kind, and upkeep design to the actual liquid chemistry, solids tons, temperature level, pressure cycle, and downstream equipment threat.
Right here is my working sequence:

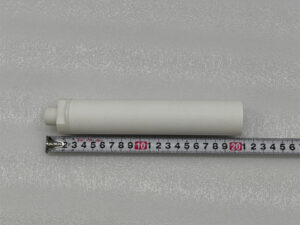

In smaller water supply, the very same discipline applies to cartridges. A 40 inch meltblown polypropylene cartridge or a 10 inch 5 micron sediment cartridge for home water purification can be perfectly valid in its lane, but it needs to not be perplexed with a stainless steel bag housing constructed for industrial circulation, pressure, and upkeep cycles.
The most effective stainless-steel bag filter housing for industrial purification is typically a 316 or 316L housing with a correctly supported basket, properly matched gasket, pressure rating over operating and surge problems, air vent and drain pipes ports, differential pressure monitoring, and sufficient bag surface area to satisfy the preferred changeout period.
Not the cheapest one.
Not the shiniest one.
The very best housing is the one that survives the chemistry, shields the downstream property, and does not punish the operator. If the driver dislikes opening it, upkeep will certainly delay changeouts. If changeouts are postponed, differential stress surges. If differential pressure rises, bags burst or bypass. After that administration asks why filtration “does not function.”
Purification functioned. Management bought a poor system.
| Spec Aspect | Low-Risk Water Service | Chemical/ Corrosive Service | Food, Beverage, or Sanitary Solution | High-Solids Industrial Service |
|---|---|---|---|---|
| Preferred material | SS 304 | SS 316/ SS 316L | SS 316L favored | SS 304 or SS 316 depending upon chemistry |
| Bag rating array | 5– 100 micron common | Process-specific | Frequently presented and verified | Usually coarse-to-fine presented |
| Seal material | EPDM typically acceptable | Viton/FKM, PTFE, or picked elastomer | FDA-compatible elastomer where needed | Depends on fluid and temperature level |
| Closure style | Secure or swing screw | Swing screw or crafted quick-open | Hygienic clamp or refined closure | Swing bolt or multi-bag closure |
| Trick threat | Undersizing | Rust and gasket strike | Cleanability and contamination | Quick blinding and basket stress |
| Must-have devices | Air vent, drain, scale ports | Air vent, drain, scale ports, chemical-compatible seals | Polished finish, drainability, sanitary style | Differential stress evaluates, hefty basket |
| Purchasing mistake | Picking by pipeline dimension | Selecting 304 to conserve money | Ignoring gaps and end up | Disregarding solids loading |
A vendor that can not address product quality inquiries is not all set for your process.
A quote that says “stainless steel” without SS 304, SS 316, or SS 316L is insufficient. A housing without provided style pressure is insufficient. A gasket noted as “rubber” is insufficient. A basket without thickness or perforation information is insufficient. An illustration without port positioning is incomplete. A vendor that states “typical is all right” prior to seeing your fluid data is presuming with your money.
I’ll go even more: many inexpensive stainless housings are not underpriced. They are under-specified.
There is a difference.
A stainless steel bag filter housing is a pressure-rated vessel that holds a filter bag inside a stainless steel shell so liquid can go through the bag media while put on hold bits are caught. It offers control, sealing, bag support, flow instructions, venting, draining pipes, and mechanical defense for industrial filtering systems.
In method, the housing is just as good as its material quality, basket fit, seal design, stress ranking, and compatibility with the process liquid. The bag does the fragment elimination; the housing makes that removal safe, repeatable, and functional.
SS 304 bag filter real estate is a general-purpose stainless-steel option for clean water and light industrial liquids, while SS 316 bag filter housing includes molybdenum for better resistance to chloride-related rust, pitting, and harsher chemical settings. SS 316 is generally liked for saltwater, cleanliness chemicals, hostile fluids, and higher-risk procedure lines.
My policy is easy: if the fluid chemistry is totally recognized and light, SS 304 may suffice. If chloride, cleaning chemicals, heat, unidentified wastewater, or downstream responsibility exists, SS 316 is worthy of serious factor to consider.
The housing does not figure out the micron score; the installed filter bag establishes the micron rating. A stainless steel bag filter housing might accept bags rated at 1, 5, 10, 25, 50, 100, or 200 micron, yet real retention relies on the bag media, building and construction, circulation price, solids type, and nominal or absolute score.
This is why asking for a “5 micron real estate” is technically incorrect. Ask for a real estate sized for your flow and pressure, fitted with a 5 micron bag picked for your fluid and solids load.
An industrial bag filter real estate ought to be sized by flow rate, viscosity, solids packing, micron score, appropriate stress decrease, bag surface, and target changeout interval. Pipe dimension alone is insufficient due to the fact that two systems with the very same inlet diameter can have totally different dust tons, liquid habits, and maintenance requirements.
A more secure sizing process begins with typical and peak flow, after that checks bag location, stress decline, basket strength, and expected solids record. If changeouts are too regular on paper, the housing is possibly as well tiny.
The best seal product for stainless steel filter real estate depends on the fluid chemistry, running temperature level, cleaning technique, and stress cycle. EPDM prevails for water, NBR is usually used with oils, Viton/FKM matches numerous hostile chemicals and higher temperature levels, and PTFE supplies wide chemical resistance yet calls for cautious securing layout.
Do decline the default gasket thoughtlessly. The gasket sees the very same fluid as the real estate, and an economical inequality can create swelling, hardening, leak, contamination, or early failing.
The most effective stainless steel bag filter housing for industrial filtering is one that matches the fluid chemistry, pressure, temperature, circulation price, solids tons, seal compatibility, link requirement, and maintenance frequency of the real process. Popular applications, SS 316 or SS 316L with appropriate airing vent, drain, basket assistance, and differential stress tracking is commonly the much safer option.
A great real estate ought to make drivers much faster and safer, not just make the investing in spread sheet look better. If the real estate is tough to open up, tough to drain, or obscure on requirements, it is not the best alternative.
A stainless-steel bag filter housing specification guide need to not make purchase comfortable. It ought to make weak specifications awkward.
Because the genuine cost is not the real estate price. It is the set you lose, the membrane layer you foul, the pump you deprive, the seal you change each month, the operator who obtains sprayed during changeout, and the design conference where everyone claims the issue was unexpected.
It was near.
So define the liquid. Specify the stress. Define SS 304 or SS 316 with intent. Define the seal. Specify the bag size and micron rating. Specify air vent, drainpipe, evaluates, basket, finish, and link criterion. Then ask suppliers to estimate the very same point.
