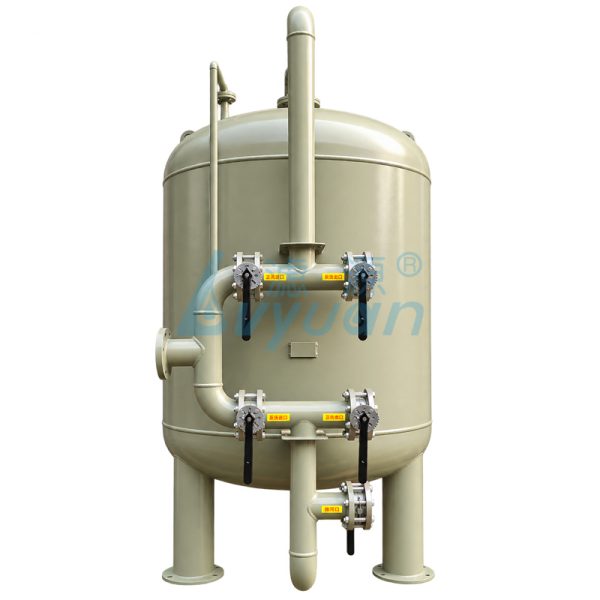

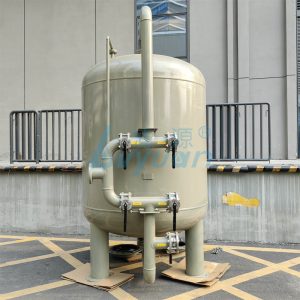

Carbon steel multimedia sand filter with a 1600 × 2800 mm vessel, 5 mm wall thickness, gray finish, and stainless steel butterfly valves. Specified for 10 bar service, with backwash piping for industrial water pretreatment.

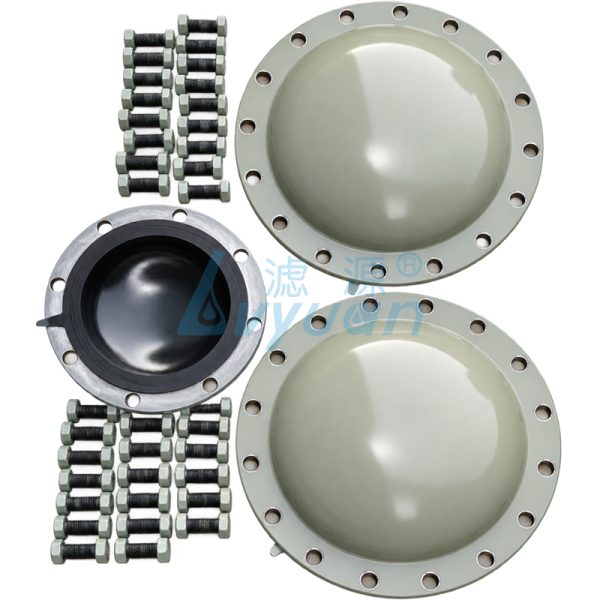

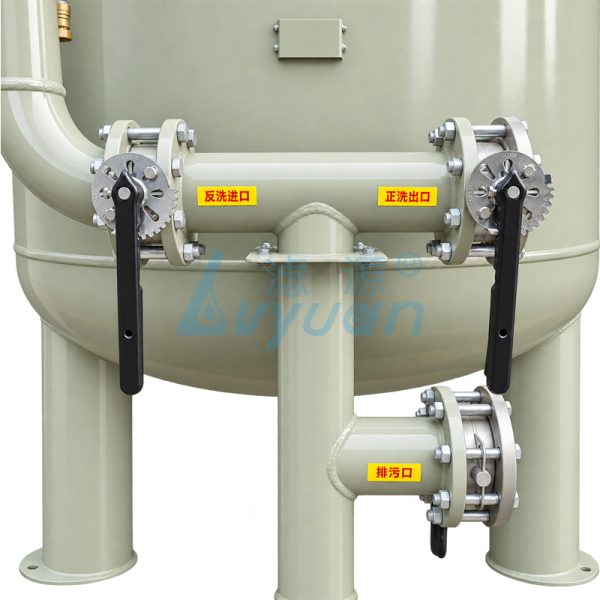

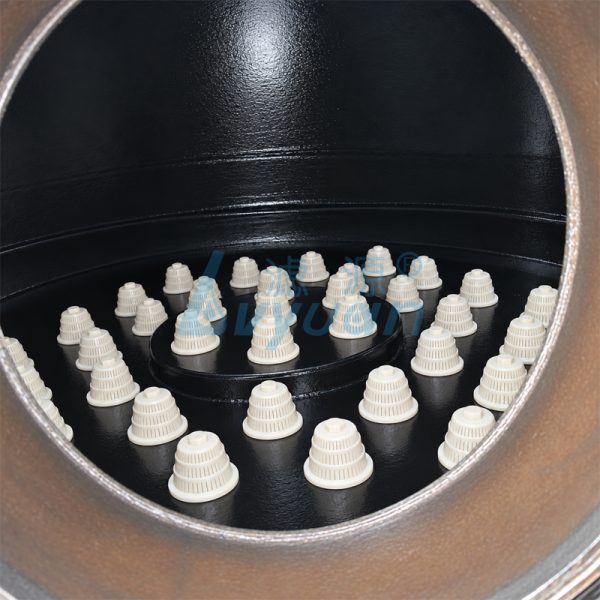

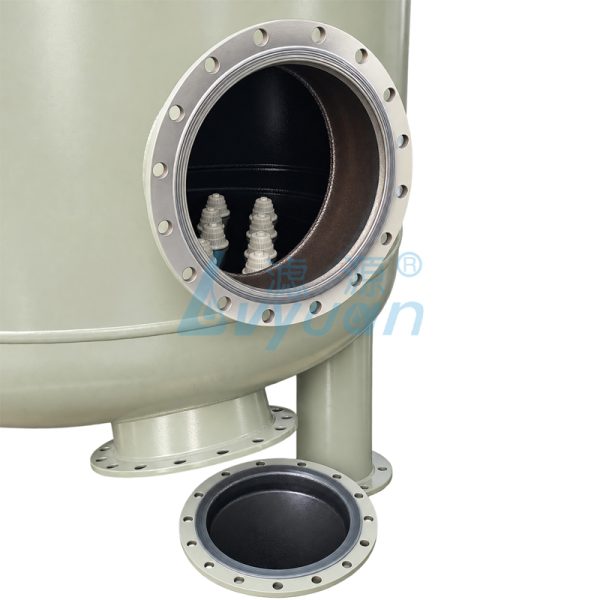

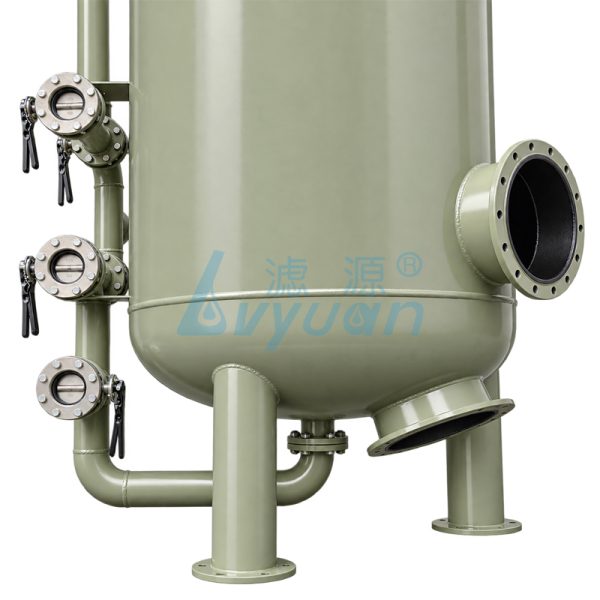

This industrial multimedia sand filter features a vertical carbon steel pressure vessel measuring 1600 mm in diameter and 2800 mm in height, with a specified 5 mm wall thickness and 10 bar operating pressure. The gray-painted vessel incorporates flanged connections, stainless steel butterfly valves, external piping, and dedicated backwash and drainage connections. Its sand media configuration is intended to capture suspended particles and reduce sediment in water treatment applications.
Designed for industrial water pretreatment, this filter is suitable for integration into process water filtration and upstream treatment arrangements. The accessible flanged openings and valve-operated backwash piping facilitate media servicing and routine cleaning. For industrial filtration solutions, the specified vessel dimensions, operating pressure, valve materials, and connection arrangement provide a technical basis for project evaluation and equipment procurement.
|
