Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
It is a chain of chemical, hydraulic, electric, civil, aquatic, membrane, and service warranty decisions that only looks straightforward in a distributor sales brochure due to the fact that the unpleasant components– consumption fouling, cartridge change-out frequency, boron denial, brine authorizations, wet-end metallurgy, SDI spikes, and power schedule– have actually been politely buried under a shiny circulation layout. Why do purchasers still compare quotes line by line as if all SWRO packages are comparable?
I have actually seen this error more than when: an EPC customer requests “1000 m FOUR/ day SWRO,” gets 4 neat offers, and selects the one that is 11% cheaper. Six months later on, the website group is battling differential stress, cartridges are breaking down early, penetrate conductivity is wandering, and the supplier is pointing to “feed water outside layout basis.”
That condition is where bad purchase goes to hide.
The global instructions is obvious. Dubai’s Hassyan seawater reverse-osmosis task got to financial enclose April 2024 at 180 MIGD, with DEWA mentioning an investment of AED 3.377 billion; Veolia individually explained the plant as 818,000 m ³/ day, with 2.9 kWh/m two power intake and phased operation from 2026 to 2027. Those numbers are not pamphlet trivia. They show where significant customers are pressing the market: bigger plants, reduced power, bankable versions, tighter warranties. **
This inquiry is commercial with a difficult transactional side.
A customer searching for Seawater Desalination Plant Purchase Guide for EPC Purchasers is not asking, “What is osmosis?” They are most likely preparing a tender, inspecting a distributor, creating technical specifications, comparing a seawater reverse osmosis plant against options, or attempting to stop a purchase group from buying the most inexpensive calamity in the heap.
So the keyword collection needs to function like this:
Key intent: purchase, define, contrast, and de-risk an SWRO desalination system.
Secondary intent: recognize tender structure, provider certification, pretreatment design, O&M concern, and lifecycle price.
Concealed intent: stay clear of blame.
That last one matters. In EPC desalination plant purchase, nobody wants to be the person who approved a vague assurance on feed salinity, recovery price, membrane layer guarantee, or stainless-steel grade. And yet it happens frequently.
A proper seawater desalination plant is not simply RO membranes and high-pressure pumps.
At minimum, an EPC-ready SWRO bundle need to specify seawater consumption, coarse testing, feed pumping, chemical dosing, multimedia or ultrafiltration pretreatment where required, cartridge purification, high-pressure pumping, energy recuperation, RO membrane layer arrays, CIP system, flushing system, post-treatment, remineralization, disinfection, brine disposal, instrumentation, PLC/SCADA, electric panels, spare components, and commissioning support.
Below is the more difficult reality: the membrane rack gets interest since it looks expensive. But the purchase danger normally rests before the membrane layer.
If the feed includes algae, silt, organics, oil traces, seasonal turbidity, or harbor contamination, a weak pretreatment plan will penalize the whole plant. This is where PP cartridge choice, housing design, and presented filtration issue. A buyer defining only “5 micron cartridge filter” has not specified enough. For smaller and modular SWRO devices, a 5– 10 micron PP sediment filter cartridge for water filtration may be suitable as a polishing barrier prior to RO. For higher-flow trains, the pressure-drop and substitute economics can move towards a large-diameter high-flow polypropylene melt-blown cartridge for fluid pre-filtration.
Small part. Huge consequence.
Poor tender: “Supply 5000 m TWO/ day salt water desalination plant.”
Much better tender: “Design, produce, supply, supervise installment, payment, and performance-test a 5000 m THREE/ day SWRO desalination system based on specified feed-water envelope, healing variety, product TDS target, boron target, temperature level variety, SDI limit, turbidity spikes, intake type, discharge restrictions, and operating hours.”
The most effective seawater desalination plant for EPC jobs is not always the one with the best membrane brand. It is the one whose layout basis makes it through real salt water.
Your tender should specify:
Feed TDS range, frequently 32,000– 45,000 mg/L for salt water depending on location.
Temperature level range, due to the fact that thickness and osmotic pressure alter the membrane layer projection.
Target permeate TDS, chloride, boron, solidity, alkalinity, and pH.
Recovery rate, normally constricted by scaling, power, brine discharge, and membrane life.
SDI15 and turbidity limits at RO inlet.
Chemical regime: FeCl three or special-interest group for coagulation, NaOCl for upstream chlorination where used, SMBS for dechlorination, H â‚‚ SO â‚„ or NaOH for pH improvement, antiscalant, CIP chemicals.
Product requirements: 316L, double 2205, incredibly double 2507, HDPE, FRP, UPVC, or rubber-lined carbon steel depending on stress zone and chloride exposure.

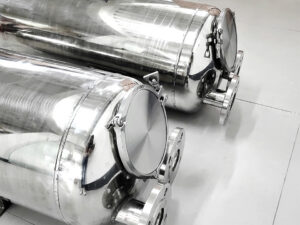

And of course, you should define filter housings too. I like making the cartridge filter area painfully specific: circulation per housing, number of aspects, layout stress, vent/drain plan, gasket product, differential stress transmitter, extra real estate capacity, and gain access to clearance. For compact industrial systems, a 304/316 stainless steel solitary filter real estate with 1 micron industrial purifier cartridge fits the procurement conversation when deterioration resistance, evaluation accessibility, and low-flow sprucing up are part of the package.
I do not ask a desalination plant supplier for the final rate first. That rewards suppliers who estimate thin and clear up later on.
I request evidence.
A serious provider must supply a procedure flow layout, P&ID, mass equilibrium, RO projection, energy estimate, pretreatment sizing basis, cartridge filling presumptions, material checklist, membrane cleaning procedure, electrical tons list, automation narrative, GA illustrations, reference tasks, producing timetable, FAT strategy, appointing approach declaration, spare-parts checklist, exclusions, and performance warranty phrasing.
If they can not generate these before commercial completion, I think the price is unfinished.
This is not resentment. It is pattern acknowledgment.
The San Diego Area Water Authority’s Carlsbad plant gives EPC customers a useful recommendation point because it has operated at a public, recorded scale: greater than 50 million gallons each day, offering approximately 400,000 people, with business procedure beginning in late 2015. SDCWA likewise states the plant draws concerning 100 million gallons each day of salt water on a normal day and converts about half into alcohol consumption water. That conversion ratio is the sort of real-world recuperation discussion customers need to push into tenders.
Pretreatment is not ornamental. It is the insurance policy for the RO block.
In EPC desalination plant procurement, I look carefully at how the vendor safeguards the RO membranes from suspended solids, biofouling, colloids, algae flower events, oil contamination, and seasonal salt water adjustments. A supplier can make a price look appealing by undersizing multimedia filters, avoiding ultrafiltration where it is justified, picking also few cartridge housings, or thinking a feed-water SDI that the website will certainly never ever attain.
After that the plant begins.
Stress rises. Operators panic. Chemicals increase. Cartridges disappear. Membranes foul. Everyone claims the initial tender was clear.
For medium and large SWRO skids, I like presented cartridge reasoning: rugged defense upstream, after that tighter polishing prior to RO. A big PP debris water filter cartridge in 1, 5, 10, 25, or 50 micron rankings can be positioned in the specification when the buyer desires adaptability across feed-water problems and substitute economics.
The United State Department of Power still frameworks reverse osmosis as less energy-intensive than thermal alternatives, while Reclamation’s desalination program has continued funding calls focused on minimizing cost, power use, and environmental impacts of treating damaged water. For buyers, that indicates the market is not standing still; your tender needs to not review like a 2014 design template.
| Purchase Area | Weak Tender Language | Strong Tender Language | Why It Matters |
|---|---|---|---|
| Capacity | “1000 m THREE/ day SWRO plant” | “1000 m FIVE/ day web penetrate at 25 ° C, feed TDS 38,000– 42,000 mg/L, 24-hour operation, post-treatment included” | Stops distributors from pricing quote various design presumptions |
| Pretreatment | “Cartridge filter consisted of” | “Defined micron score, filter media, circulation per element, real estate matter, DP alarm system, change-out basis, SDI target” | Protects membranes and O&M budget plan |
| RO membrane layers | “Top notch RO membrane layer” | “8040 SWRO membrane projection with recovery, change, being rejected, scaling limits, cleaning up frequency assumption” | Converts sales language right into performance math |
| Power usage | “Energy-saving layout” | “Surefire kWh/m ³ at defined salinity, temperature, healing, and product top quality” | Makes energy comparable in between proposals |
| Materials | “SS components” | “316L/duplex/super duplex by service zone, chloride exposure, stress, and chemical get in touch with” | Protects against rust shortcuts |
| Chemicals | “Application system consisted of” | “NaOCl, SMBS, antiscalant, acid/alkali, CIP container, dosing pumps, interlocks, chemical usage quote” | Reveals operating expense |
| Controls | “PLC control panel” | “I/O checklist, instrument checklist, alarm system matrix, remote gain access to plan, data logging, cybersecurity boundary” | Avoids appointing battles |
| Assurances | “One-year guarantee” | “Outcome, TDS, boron, recovery, kWh/m SIX, accessibility, membrane layer service warranty, acceptance test treatment” | Makes performance enforceable |
| Spares | “Criterion extra components” | “Two-year spares, consumables, cartridge price quote, membrane layer substitute routine, pump seals, instruments” | Exposes real lifecycle expense |
Below is my candid scoring model.
Offer only 25% weight to CAPEX. Give 25% to process design and guarantee high quality. Offer 20% to pretreatment reputation. Offer 15% to lifecycle cost. Provide 10% to distribution and fabrication control. Provide 5% to references that in fact resemble your task.
Also extreme?
Possibly. However the low-cost supplier who can not discuss SDI control, consumption fouling, salt water presumptions, cartridge loading, membrane flux, and chemical cleaning will certainly come to be really expensive after mechanical conclusion.
A salt water desalination plant vendor ought to be treated like a procedure companion, not a directory vendor. In a clean tender, distributors have to submit deviations in an official table. No buried assumptions. No “as per typical style.” No secret membranes. No generic real estate. No fake power assurance gauged at practical salinity.
The marketplace is moving toward bankable, high-efficiency SWRO. Hassyan’s public numbers– 180 MIGD, AED 3.377 billion, 0.36536 USD/m two listed by DEWA for least expensive desalinated-water cost, and Veolia’s 2.9 kWh/m five technology case– elevate the bar wherefore buyers should expect in significant job documentation. **
Ask these prior to you allow a desalination plant tender end up being a cost race.
What feed-water evaluation did you utilize?
What is the optimum design SDI15 at RO inlet?
What pretreatment system is assumed, and what takes place during algae bloom or turbidity spikes?
What is the net permeate capacity after internal usage, flushing, and CIP losses?
What recuperation rate are you ensuring?
What is the guaranteed product TDS at minimum and maximum feed temperature?
Is boron denial required, and if indeed, is 2nd pass RO included?
What is the assured energy intake in kWh/m ³? Which power healing tool is consisted of?
What is the membrane layer change?
What is the cartridge filter change-out assumption?
What is the design differential stress across filters?
What metallurgy is utilized in the high-pressure salt water section?
What chemicals are taken in per m ³ of permeate?
What is left out from your deal?
That last concern is the killer. A provider’s exclusions page tells you greater than the cover letter.
The very best seawater desalination plant for EPC customers is rarely the prettiest proposal.
It is the one with the fewest surprise assumptions.
I prefer to acquire a somewhat much more pricey SWRO desalination system with conservative flux, clear pretreatment, transparent cartridge loading, proper 316L or duplex choice, recorded power healing, and enforceable efficiency screening than an affordable system that presumes best salt water and heroic operators.
And I do not rely on any kind of quote that treats pretreatment as a footnote.
Metropolitan and commercial water therapy plant customers are under pressure since water threat is no more a future concern. UNESCO’s 2024 World Water Development Record messaging stated that 2.2 billion individuals still live without securely taken care of alcohol consumption water, and UNICEF’s water shortage data claims 4 billion people experience serious water deficiency for at least one month every year. These are not procurement information, however they clarify why owners are pushing EPC groups to provide faster, more affordable, and with less reasons.
A seawater desalination plant is an industrial water treatment system that removes dissolved salts from ocean water, generally via salt water reverse osmosis, to create drinkable, procedure, or energy water for towns, power stations, refineries, mines, ports, and seaside commercial zones.
For EPC purchasers, the trick is not the meaning. The secret is boundary control. Your procurement bundle have to define intake range, pretreatment, RO trains, power recovery, post-treatment, brine discharge, civil user interfaces, electric loads, automation, consumables, commissioning, and efficiency testing.
EPC desalination plant purchase is the organized process of specifying, tendering, comparing, acquiring, examining, and commissioning an SWRO package so the design service provider controls capacity, power use, membrane layer life, corrosion danger, civil interfaces, delivery dates, warranty direct exposure, and lifecycle price.
In method, this means the customer must force all desalination plant vendors to price estimate against the exact same style basis. If one vendor assumes 38,000 mg/L TDS and another assumes 45,000 mg/L, you are not comparing prices. You are comparing assumptions.
The very best seawater desalination plant for EPC tasks is the one that fulfills feed-water irregularity, recovery, product TDS, energy-consumption, metallurgy, impact, O&M staffing, and legal approval standards, not the one with the most affordable first quote rate in actual procedure.
A good plant is boring after commissioning. It produces water, holds stress, cleanses naturally, takes in chemicals within forecast, and does not make the operator redesign pretreatment throughout monsoon season, algae bloom, or port dredging.
Pretreatment in an SWRO desalination system is the front-end filtration and conditioning train that eliminates put on hold solids, organics, biofouling tons, oil, algae, and fine sediment prior to seawater reaches the high-pressure pump and reverse-osmosis membrane layers during continuous coastal solution at scale.
Weak pretreatment develops high cartridge intake, unsteady SDI, membrane fouling, greater cleaning frequency, lower permeate manufacturing, and service warranty conflict. In ordinary language: it turns an affordable purchase win into an operations loss.
A desalination plant tender need to ask suppliers for a full basis of layout, procedure circulation diagram, mass equilibrium, power quote, devices datasheets, membrane estimate, pretreatment sizing, chemical application ideology, deterioration strategy, testing procedure, distribution schedule, exclusions list, and efficiency warranty.
The tender needs to likewise call for a variance listing, spare-parts proposition, consumables price quote, FAT/SAT plan, appointing routine, and approval test approach. Without these, the most affordable price is normally simply the least full offer.
Before releasing your next desalination plant tender, tighten the pre-RO filtration area, need real membrane layer projections, force every distributor onto the same feed-water envelope, and make assurances quantifiable.
For EPC customers specifying cartridge purification, real estates, or substitute components inside a salt water reverse osmosis plant, assess the filtering alternatives over and straighten micron rating, circulation rate, material, real estate geometry, and change-out presumptions prior to final business contrast. That is where cheap proposals usually quit looking economical.
