Dirt informs tricks. When a filter bag basket begins cutting right into material, raiding the tube sheet, or opening up a little bypass course near the collar, the system typically murmurs prior to it screams: an odd ΔP fad, a faint clean-side dirt trace, a pulse-cleaning pattern that looks “great” till somebody actually opens the housing. Why do so lots of crews still trust the gauge alone?
I’ll offer you the unpopular answer: since a correct filter bag basket assessment is sluggish, dirty, and politically troublesome. It can reveal poor purchasing, careless change-outs, bad compressed-air technique, and baskets that should have been scrapped 2 shutdowns ago.
The searcher is not delicately browsing. This is informative intent with a heavy maintenance-risk side. They need to know how to evaluate filter bag baskets, yet under that rests a harder question: “Is my purification system letting unfiltered product bypass the media, and can I confirm it prior to production condemns the filter supplier?”
That matters because filter bag bypass is hardly ever one significant failing. Regularly, it is a pile of tiny sins: a bent basket cable, a cocked snap band, a used gasket, a distorted tube sheet, a venturi misalignment, and an upkeep log created after lunch from memory.
Difficult reality: many “negative bags” are actually bad baskets.

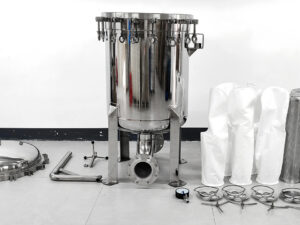

A filter bag basket, usually called a filter bag cage in baghouse systems, holds the fabric bag fit so gas or liquid can go through the filter media instead of collapsing it. In pulse-jet dirt collection agencies, the basket sustains the bag during filtration and during compressed-air cleaning pulses.
No glamour below. But if the cage is curved, rusty, broken, undersized, oversized, rough-welded, or mounted off-center, it ends up being a cutting tool.
The exact same discipline applies across filtration groups. In cartridge filtering, designers obsess over micron ranking, media compatibility, end-cap geometry, and gasket material; for example, PP debris elimination cartridges with 1, 5, 10, and 25 micron alternatives show how much purification efficiency depends on matching media, seal, and housing. Bag baskets should have the very same scrutiny, however they usually obtain dealt with like scrap metal with legs.
Many filter bag basket damages starts in 4 places.
Initially, the leading collar area. That is where vibration, inadequate seats, and awkward installation create abrasion. Second, the vertical cords. Seek broken welds, bowed ribs, corrosion, and cable finishes that seem like fishhooks. Third, the bottom frying pan or cage cap. If it is nicked or offset, the bag may twist or massage. Fourth, television sheet interface. This is where bypass comes to be expensive.
I have actually seen examination checklists that say “visual check full” after someone shines a flashlight over 300 cages in 15 mins. That is not examination. That is cinema.
Beginning with operating proof. Record differential stress, pulse regularity, compressed-air pressure, noticeable outlet exhausts, product loss, and clean-side dust traces. A reduced ΔP can signify bypass just as long as “tidy bags.” A high ΔP can signal blinding, dampness, chemical assault, or overloading.
Do not praise one number.
Use this triage sequence:
This is exactly how you quit thinking. It is additionally how you prevent changing 400 bags when 18 poor baskets are doing the damages.
Lay the basket on a level assessment table. Roll it slowly. If it wobbles, it is curved. If it rocks, it is not right. If the welds look pleased, fractured, sharp, or corroded, the bag will eventually pay the cost.
Run a gloved hand along every vertical cable. After that run a tidy fabric over the same area. If the towel grabs, so will certainly the bag. Utilize a 300– 500 lux evaluation light, not a dying flashlight from the maintenance cabinet. Step basket diameter against the bag and tube sheet spec. Check size resistance. Examine venturi seating. Inspect the top flange.
And yes, reject cages that “might still function.”
That phrase has actually set you back plants more money than honest scrap containers ever before will.
Filter bag leakage discovery is not just fluorescent powder, although powder screening can be beneficial when the clean-side pattern is unclear. Bypass discovery is a reasoning exercise: locate where dirt shows up, then map the shortest dirty-to-clean path.
Try to find these indicators:
The killer clue is repetition. One stopped working bag may be a bag trouble. Six stopped working bags in the exact same row are an equipment, air flow, or setup problem.
| Evaluation Finding | Likely Create | Bypass Danger | What I Would certainly Do |
|---|---|---|---|
| Bent basket body | Misuse, bad storage, required installment | High | Get rid of and ditch; do not straighten unless accepted by OEM tolerance |
| Sharp weld or busted cable | Poor construction, deterioration, exhaustion | High | Deny basket; inspect matching bag for abrasion lines |
| Dust around tube sheet opening | Poor seal, deformed tube sheet, loosened snap band | Extremely high | Tidy, reseat, gasket-check, powder-test if needed |
| Low ΔP with electrical outlet dust | Bypass, missing bag, fell short seal | Extremely high | Quit presuming “low stress is excellent”; evaluate tidy side instantly |
| High ΔP with intact baskets | Blinded media, wetness, wrong cleaning cycle | Medium | Evaluation air pressure, pulse timing, humidity, and dirt loading |
| Worn away cage surface area | Acid gas, condensation, chemical inequality | High | Testimonial product upgrade: galvanized, epoxy-coated, 304/316 stainless |
| Bag rubbing in one instructions | Air flow predisposition, misalignment, inadequate cage fit | Medium to high | Inspect inlet baffling, cage straightness, and bag stress |
| Repeated joint failures | Wrong bag fit, cage mismatch, pulse stress and anxiety | High | Action bag area, cage OD, and joint alignment |
The common suspects are uninteresting, which is why they are dangerous.
A missing or damaged gasket. A snap band not completely seated. A basket flange resting pleased by 2– 3 mm. A tube sheet hole used oval. A venturi cocked off-center. A bag set up with a twist. A cage dragged across concrete prior to installment. A compressed-air pulse as well aggressive for aged media.
So, how do you protect against filter bag bypass? You quit dealing with setup as a muscle mass task.
Usage two-person installment on long cages. Shop baskets horizontally with appropriate assistance. Do not stack bare cages till they deform under their own weight. Maintain cages dry. Reject noticeable rust. Train the crew to feel for intensity, not just seek it.
In liquid purification, purchasers already recognize that end-cap and O-ring details matter; see just how DOE, 222+Fin, 222+Apartment, 226+Fin, and 226+Level end-cap layouts adjustment fit and securing logic. Baghouse teams must be equally as picky concerning tube sheet seats and cage geometry.
Right here is my candid policy: if a plant can not show cage serials, evaluation date, issue type, compartment number, and activity taken, then it does not have an upkeep program. It has a memory-based repair routine.
For industrial filter bag upkeep, log these fields:
I such as photo proof because it closes down mythology. A curved cage on a screen is more difficult to argue with than a sentence in a notebook.
Change the basket when it is curved, rusty, fractured, undersized, oversized, rough to the touch, visibly out-of-round, missing elements, or repetitively related to bag failing.
Do not await tragic failing.
An economical basket can ruin a costly bag. A damaged basket can likewise phony a bag top quality issue, toxin distributor partnerships, and send out acquiring teams chasing after lower textile rates instead of dealing with the steel skeletal system triggering the leak.
This is where purchase requires back. If the system requires better media assistance, much better layers, or much better dimensional control, acquire that. In filtration manufacturing, uniformity is not attractive; products such as a 5-micron polypropylene spun filter cartridge depend on repeatable geometry, product option, and regulated pore structure. Bag baskets are not media, yet they protect media. That makes them part of performance, not simply hardware.
Deterioration informs you what the procedure is doing when nobody is enjoying. Acid gases, condensation, chloride direct exposure, high moisture, and inadequate shutdown procedures can transform cages into rough rust documents.
If moisture hits dust, you may get caking. If caking increases ΔP, pulse cleaning heightens. If pulse cleansing increases versus a damaged cage, the bag flexes harder. Then the seam stops working, the tube sheet leakages, the clean side gets dirt, and someone says the bags were faulty.
Convenient tale. Generally incomplete.
For plants running mixed filtering assets, it aids to compare product compatibility across systems. Carbon and PP items such as a 10-inch granular UDF turned on carbon filter cartridge for pre-filtration remind us that media, chemistry, and housing problems can not be divided. Baghouse baskets should have the very same chemical review: galvanized steel, epoxy-coated steel, 304 stainless, 316 stainless, or specialized alloys depending on gas stream and dew point.
For normal-duty collectors, evaluate throughout set up shutdowns and after every bag modification. For rough dirt, high-temperature gas, sticky dirt, corrosive service, or repeated leakage events, evaluate month-to-month until the failing pattern is understood.
The lazy answer is “comply with OEM assistance.” Penalty. Beginning there. However if your outlet dust, ΔP actions, or bag life informs a various story, think the devices.
A functional timetable:
| Operating Problem | Basket Assessment Frequency | Drip Discovery Frequency |
|---|---|---|
| Tidy, dry, low-abrasion dirt | Every 6– one year | After bag adjustment or noticeable emission occasion |
| Rough mineral dirt | Every 3– 6 months | Quarterly or after ΔP anomaly |
| Harsh or humid gas stream | Monthly to quarterly | Month-to-month until steady |
| New bag installment | During setup and after start-up check | Within first operating cycle |
| Repeated bag failings | Immediate full-row examination | Immediate examination and clean-side mapping |
A major purchaser should specify basket OD tolerance, cord count, ring spacing, product grade, surface coating, layer density where pertinent, leading design, bottom cap design, venturi compatibility, and packaging approach.
Product packaging? Yes. Product packaging.
I have actually seen decent cages destroyed prior to setup because they were shipped, dragged, piled, and stored like ranch fence. A cage that gets here bent is already an upkeep event.
This is where production-line thinking matters. The very same customer who asks about repeatability in a CTO active carbon filter cartridge assembly line must ask basket providers concerning weld uniformity, covering bond, jig control, and assessment documents.
Filter bag bypass is the movement of filthy gas or fluid around the intended filter path, generally with a fallen short seal, split tube sheet, bent basket, loose collar, missing out on gasket, or damaged bag seat, permitting fragments to get to the tidy side without appropriate capture. In sensible terms, bypass means the filter media is no more managing the process. The system may still run, yet the filtering insurance claim is jeopardized.
To examine filter bag baskets for damages, eliminate the bag, tidy the cage surface area, roll the basket on a flat table, check straightness, inspect welds and rings, really feel for sharp edges, verify diameter and length, and file corrosion, splits, deformation, or harsh points. The secret is touch plus dimension. Eyes alone miss burrs, pleased welds, and subtle out-of-round problems.
Filter bag cage damages is generally brought on by misuse, bad storage, corrosion, unpleasant dust, extreme pulse pressure, wrong cage-to-bag fit, thermal stress, chemical strike, or compelled installment through a tight tube sheet opening. The reason is rarely mystical. Most failings map back to procedure problems, purchasing faster ways, or hurried upkeep.
Filter bag leaks can be found early by tracking differential pressure patterns, checking the clean-air plenum, checking for dust routes near tube sheet openings, using fluorescent powder examinations, evaluating bag leakage detector signals, and contrasting failings by row, area, and installment day. The fastest success come from pattern recognition. Random failures behave in a different way from organized bypass.
Filter bag bypass is protected against by matching bag, basket, gasket, and tube sheet geometry; turning down curved or sharp baskets; seating breeze bands appropriately; controlling pulse pressure; examining clean-side dust patterns; and recording every stopped working placement after maintenance. Prevention is not one method. It is a technique constructed right into setup, purchase, and closure evaluation.
The bag obtains blamed due to the fact that it is soft, noticeable, and changeable. The basket leaves blame since it looks long-term.
That is bad upkeep reasoning.
A strong baghouse filter basket assessment program deals with every cage as an accuracy assistance part, not a disposable cord framework. Inspect straightness. Inspect welds. Inspect sealing surface areas. Check rust. Examine television sheet. Check the tidy side. Then make a note of what you found before manufacturing noise hides the evidence.
