It can look straightened while the pipeline is pulling the vessel sidewards, the gasket is inappropriate with the process liquid, and the drain that must prove isolation is trapped behind a platform no one can get to.
What happens when someone opens that real estate six months later?
That is the question I would put to a professional prior to asking whether the installation looks neat. A commercial filter housing installation has to work twice: as soon as when the system starts, and again when a driver isolates, drains, opens, and reseals it under normal plant problems. A picture of a clean weld tells you little about either event.
This checklist is composed for the people approving that duty: mechanical contractors, job engineers, upkeep leads, and owners’ agents. It covers fluid, gas, and heavy steam applications, but it does not turn a directory rating right into an authorized design. The project illustrations, process danger evaluation, administrative needs, vessel documents, and producer’s directions regulate the actual installment.
Begin with the tag number. Then make the team point to the very same tag on the illustration, the provided housing, and the physical line. If those 3 identifiers do not concur, quit the tie-in.
This seems primary till a closure places a number of comparable stainless steel vessels in the exact same space. The United State Chemical Safety Board’s examination of an October 10, 2024, launch at the PEMEX Deer Park refinery reveals the cost of counting on distance and appearance: workers opened a flange on a pressurized hydrogen sulfide line rather than the desired piping about 5 feet away. Two contract employees died, and 13 others were required to clinical facilities. The last record was released in February 2026. That event included refinery piping, not a filter real estate; its lesson for real estate work is exact equipment identification before a flange is opened up.
For every housing, I would require one marked-up setup sheet showing:
Do not blunder a product-page maximum for consent to operate at that problem in every fluid, temperature level, and configuration. For example, a noted SS304/316L multi-cartridge filter housing deals 3, 5, 7, 11, or 19 cartridge positions and DOE, 222/SOE, or 226/SOE interfaces. Those choices change what should be checked inside the vessel. The website likewise lists a maximum of 10 bar and 90 ° C for that product; the supplied device’s approved documents must settle its actual limitations.
Professional sign-off: The physical housing, nameplate, accepted illustration, and procedure line match. Every discrepancy has a written resolution before manufacture beginnings.
A filter housing is not a pipeline support. Yet piping is consistently persuaded right into area with bolts and then left to pack the vessel nozzle for several years.
Set the real estate on its defined structure or structure. Confirm degree, anchor locations, grout or installing details where required, and the planned course for eliminating a cover, basket, or unabridged cartridge. Check the assistance plan against the filled up operating weight and the loads determined in the task style. Where the piping style asks for adaptability or independent assistance, install it before final alignment. The controling piping engineer should resolve nozzle-load inquiries; a field team should not develop an allowable tons from a vessel’s stress rating.
After that carry out a fit talk to the link unloaded. Mating flanges must meet within the project’s placement tolerances without being dragged together. Threaded links should begin freely and make use of the approved sealant and engagement technique. Hygienic clamps require the appropriate ferrules and gasket account, with sufficient room to inspect the joint after assembly.
I would deny a design that gives an excellent straight pipe run and no sensible method to lift the cover. A top-entry stainless steel bag filter real estate places the inlet above the bag and utilizes a swing-bolt cover; that geometry makes above accessibility, the bottom outlet, and a clear bag-removal course component of the installment choice. Attract the access envelope on the design. Walk it with the people that will change the bag.
Check the little connections as carefully as the large ones. A vent that factors into a driver’s face is a negative vent. A low-point drainpipe that can not fully vacant the chamber develops an unpleasant shock at the very first opening. A scale set up where it can not be read from the seclusion point uses less defense than its purchase order recommends.
Service provider sign-off: The vessel is sustained, the piping fits without required alignment, and an employee can isolate, air vent, drainpipe, open, get rid of the element, and reseal the real estate from the available gain access to space.
“Separated and drained pipes” is a claim. Make somebody show it.
Prior to the installment linkup or a later real estate opening, recognize every power source that can get to the work: upstream pressure, downstream heartburn, caught liquid, pressed gas, heavy steam, warmth, pump reactivate, automated valves, and linked cleaning or bypass lines. Apply the site’s authorized energy-control and line-opening treatments. Validate the boundary at the tools, using the specified ways to eliminate and examine recurring energy. A stress scale reading zero is useful evidence, however it can not show that every pocket is empty or that a connected scale connection is telling the truth.
In the USA, OSHA’s 29 CFR 1910.147 requires recorded hazardous-energy control procedures for covered maintenance and maintenance, with details steps for shutdown, seclusion, device control, and confirmation. Applicability depends upon the work and devices; the factor for the field checklist is to call the real shutoffs and verification factors, then utilize the facility’s treatment.
The 2023 CSB report on a hydrogen chloride launch at Wacker Polysilicon is worthy of focus for one more reason. Throughout upkeep in 2020, too much torque on flange screws fractured a heat-exchanger outlet pipeline including HCl. Workers from different contractors were nearby; one passed away and 2 were seriously injured while attempting to escape the release. The tools was a warm exchanger, not a filter real estate, but the searchings for make a strong situation for collaborating simultaneous job and recognizing what is inside connected piping prior to applying force.
My policy is blunt: the seclusion plan belongs to the devices tag and the certain job. A generic authorization title such as “filter installment” can not inform a trimmer which of 2 similar branches is live.
Professional sign-off: The website driver and professional collectively determine the equipment, seclusion points, pressure-release route, and line-opening factor in the field. The authorization and marked drawing reflect the exact same limit.
“Stainless steel” is not a full product requirements. SS304 and SS316L are distinct options; neither resolves whether a certain chloride focus, cleaning up chemical, temperature level cycle, or process pollutant serves. The wetted parts, gasket, element end caps, adhesives, and seals all need testimonial versus the real liquid and cleansing regimen.
Record the aspect interface prior to setup. DOE, 222, and 226 cartridges are not interchangeable summaries. A cartridge can have the appropriate length and micron ranking yet seal versus the incorrect seat. For bags, check basket support, bag size, ring design, and the method the bag seals at the inlet. For gas and heavy steam, check whether the specified aspect and gasket are approved for the temperature level, stress, and solution medium. Keep the approved element recognition in the turnover pack so a future purchaser does not order by approximate measurements.

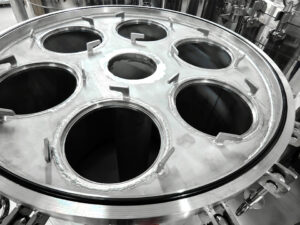

The item mix shows why a solitary “common filter” checklist fails. A stainless steel multi-bag filter real estate can be set up for 3 to 12 bags, with # 2 bags listed at Ø180 × 810 mm and flow dependent on configuration and operating conditions. A stainless steel inline cartridge real estate rather notes one 10 ″ to 40 ″ cartridge, DOE/222/226 choices, and hygienic Tri-Clamp connections. Their component seating and service accessibility checks are different.
Check sealing surfaces under good light. Shield them during rigging and welding. Utilize the approved gasket material and setup technique, and follow the supplier’s closure series and torque directions for the supplied assembly. Do not borrow a torque worth from an aesthetically comparable cover. Mark fasteners after the needed tightening up and tape any mandated recheck.
Contractor sign-off: Product and seal compatibility are authorized for the process; the installed aspect matches the defined interface; securing surface areas and closure elements pass evaluation.
A differential-pressure measurement serves only if the faucets represent the stress quickly upstream and downstream of the aspect under the designated circulation course. Put both analyses in systems the driver recognizes. Tag the high and low sides. Give safe methods to isolate and service the instruments under the plant’s procedure.
Catch a clean-element baseline at a recognized flow rate, fluid temperature level, and shutoff placement. “Pressure decline: 0.3 bar” without those conditions is weak handover data. Viscosity and flow alter the analysis; so can a partly open bypass. Specify the change-out or examination limit from the element distributor and procedure design, and state the maximum permitted differential pressure throughout the aspect. That restriction might be lower than the vessel’s permitted operating pressure.
Vent and drain information be worthy of similar discipline. Course discharge to the accepted destination. Demonstrate how workers will certainly validate that a cavity is empty before launching the closure. On vapor, account for condensate administration and risk-free warm-up; on compressed gas, represent the stored power and the examination medium. An OEM stainless steel steam filter real estate lists DN50– DN150 flanged connections, steel elements, and an optimum operating temperature of 150 ° C for its explained arrangement. Those numbers aid recognize a feasible item class; they are not an alternative to the supplied vessel’s data sheet and the steam-system style.
I have little persistence for a tool schedule that counts gadgets yet never specifies the choice each device enables. The housing requires readings that aid an operator identify a packing element, a bypass problem, and a blocked or damaged stress connection.
Service provider sign-off: Gauges, differential-pressure faucets, vent, and drainpipe are identified, obtainable, appropriately oriented, and consisted of in the operating procedure.
A manufacturing facility test and an area test respond to different concerns. Factory records might develop what occurred to the bare vessel before delivery. The site acceptance plan have to address the mounted piping, area joints, devices, closure, and any type of damage or change introduced during setup.
Have the liable designer authorize the examination border, tool, pressure, period, instrumentation, and exemption location under the appropriate job code and procedure. Do not assume that a pneumatically-driven test is an easy alternative to a hydrostatic test; compressed gas stores significant energy. Furthermore, do not casually fill a gas or heavy steam system with water without an accepted prepare for drying and returning it to solution. Shield components, gauges, relief tools, and other components as the approved procedure calls for.
After pressure-boundary approval, payment the real circulation course. Confirm inlet and outlet direction, shutoff lineup, venting, preliminary flow, pressure decline, leak, and element seats. Tape-record the readings. If the clean differential stress is currently expensive, check out pipe particles, an obstructed basket, a small element, an incorrect cartridge, or a shutoff left partially closed prior to calling the installation full.
A real estate can be pressure-tight and still bypass its filter tool. This is the catch in an appointing checklist that finishes at “no leaks.” On a multi-cartridge system, evaluate every seat and hold-down. On a bag unit, evaluate the bag ring and support basket. If a process requires a details integrity or performance test, use the project’s approved approach; a generic visual assessment can not stand in for it.
Specialist sign-off: Test documents identify the limit and problems; the installed setting up satisfies the approved approval standards; clean operating analyses and the last valve schedule are tape-recorded.
The table is a control sheet, not an alternative to the website treatment. Go into the task’s limits and record numbers prior to the crew reaches each hold factor.
| Hold factor | Specialist evidence | Proprietor or engineer checks | Stop-work trigger |
|---|---|---|---|
| Equipment recognition | Tag, serial number, nameplate, marked illustration | Housing and physical line match the approved service | Unresolved tag or drawing mismatch |
| Style fit | Authorized information sheet, component and seal schedule | Stress, temperature level, fluid, and connection demands agree | Missing rating or unauthorized product alternative |
| Mechanical placement | Structure and assistance examination, gain access to walk-through | No compelled pipeline fit; cover and element can be removed | Piping tons the nozzle or solution path is blocked |
| Isolation for tie-in | Site permit, field-marked boundary, verification record | Appropriate line and every power resource identified | Isolation factor or line-opening location doubts |
| Inner assembly | Element IDs, gasket records, closure inspection | Right seats, baskets, seals, and closure method | Damaged sealing face or inappropriate component |
| Boundary examination | Approved treatment and authorized results | Set up joints fulfill job approval criteria | Leak, undocumented examination adjustment, or hazardous examination configuration |
| Appointing | Flow, inlet and outlet pressure, temperature level, shutoff schedule | Secure procedure at the defined test problem | Unexpected pressure drop, bypass, or leak |
| Handover | As-built illustration, saves list, operating limits, training record | Upkeep group can separate and open the system securely | No useful operating or change-out instructions |
There is a bigger reason to demand these documents. The United State Bureau of Labor Data counted 5,070 deadly work injuries in 2024, including 1,032 amongst building and extraction workers. Those are wide occupational figures, not filter-housing incident prices. They do, nonetheless, placed the sector’s casual use “routine setup” in point of view.
The last plan ought to tell a maintenance specialist what the setup is, how it operates, and how it is ensured. Consist of the as-built P&ID or marked illustration, vessel and closure documentation, approved element and gasket requirements, examination records, clean-element standard, alarm or change-out restrictions, instrument details, and spare parts recognition. Videotape variances and their approvals. Pictures can make clear the shutoff lineup and gain access to path, but they can not replace a drawing.
Stroll the future change-out with procedures prior to demobilization. Which shutoff is shut first? Where is recurring stress checked? Where does drained fluid go? Just how is a hefty, damp bag or lengthy cartridge raised without damaging its seat? That licenses reopening? If the answers depend on the installer still getting on site, handover is unfinished.
I would also ask the service provider to identify the most likely field-made flaw. On a hygienic line it might be a pinched gasket or an inadequately straightened ferrule. On a big bag vessel it may be closure gain access to or in need of support piping. On a cartridge vessel it may be the wrong end-cap interface. On a vapor line it might be condensate handling during start-up. That conversation is better than one more generic “setup complete” stamp.
A commercial filter housing installation checklist is a recorded series of equipment-identification, design-verification, isolation, mechanical-assembly, testing, commissioning, and handover checks utilized to verify that a details housing is securely connected to its desired process and can be operated and serviced under the approved website procedures. It must identify proof and sign-off proprietors. A list replicated from an additional vessel can not develop the appropriate pressure rating, component interface, or seclusion boundary for this set.
Safe commercial filter real estate setup is the controlled procedure of matching the supplied vessel to approved drawings and service conditions, preparing and confirming the seclusion boundary, sustaining and straightening the assembly, suitable compatible interior components, examining the mounted stress boundary, and videotaping functional efficiency prior to launch to procedures. The precise sequence complies with the website permit, engineering records, and manufacturer’s guidelines. Never presume examination stress or closure torque from a similar-looking device.
A filter housing commissioning checklist is the approval record for the set up device’s pressure limit and filtering function, consisting of the verified shutoff schedule, airing vent, leakage checks, operating flow, inlet and outlet stress, clean-element differential pressure, instrument action, element seats, and signed deviations at the specified procedure condition. It needs to leave a driver with a baseline that can be repeated. A successful leak examination alone does not verify efficient filtering.
A vessel stress rating is the authorized limit for pressure acting on the real estate under its specific conditions, while an aspect differential-pressure limitation describes the permitted stress difference throughout the bag, cartridge, basket, or other inner component; both restrictions safeguard various components of the assembly and need to be checked individually. A 10 bar housing rating, as an example, does not authorize a 10 bar decline throughout a cartridge. Utilize the supplied paperwork for both restrictions.
A filter housing handover plan is the set of authorized documents needed to run, maintain, evaluate, and change the mounted possession, including its as-built identification, vessel documents, product and element requirements, isolation treatment, test outcomes, appointing baseline, running limitations, instrument details, and authorized resolution of field modifications. Provide upkeep the details in a form it can utilize at the real estate. An unindexed pile of submittals does little for the next shift.
If you are choosing a real estate for a brand-new line or replacing one throughout a shutdown, send out the supplier the service fluid, circulation array, pressure and temperature envelope, needed filtration score, aspect user interface, link criterion, seal needs, offered accessibility room, and applicable task paperwork. Consist of the attracting alteration. Ask for the recommended unit’s actual information sheet and plan drawing prior to the specialist commits to a spool.
That exchange is the last practical checkpoint before a getting selection comes to be a field restriction. Provide your service provider and vendor the very same problems, then use this list to hold the setup versus them.
