Industrial filtering buyers are frequently handed a cartridge spec, a nominal micron rating, and a calming cost each. That is not a filtering method. It is buying documents.
Low-cost filters exist.
A reduced cartridge rate looks appealing until premature loading forces drivers to close down an assembly line, exposes an RO membrane layer to suspended solids, increases pump power, or sends out partly dealt with water back via an expensive procedure momentarily pass. What exactly did the plant save?
I have a blunt guideline: evaluate a prefilter by what it safeguards, not by what it sets you back.
That difference matters as manufacturers spend a lot more heavily in water recycling and integrated treatment. During an August 2024 United State Department of Power industrial-water peer exchange, Nissan reported that an automated purification system eliminated once-through rinse water and conserved 48.6 million gallons yearly. In April 2024, the Division of Power also introduced $75 million for the National Partnership for Water Innovation to progress energy-efficient treatment, reuse, and desalination systems. Purification is no longer a maintenance-side concern. It is becoming manufacturing framework.
String wound filter cartridges have survived decades of item technology due to the fact that, in the best service, they provide a useful mix of dirt-holding capability, product versatility, reduced acquisition expense, and forgiving deepness purification. Yet they are also regularly misapplied.
And that is where the trouble begins.

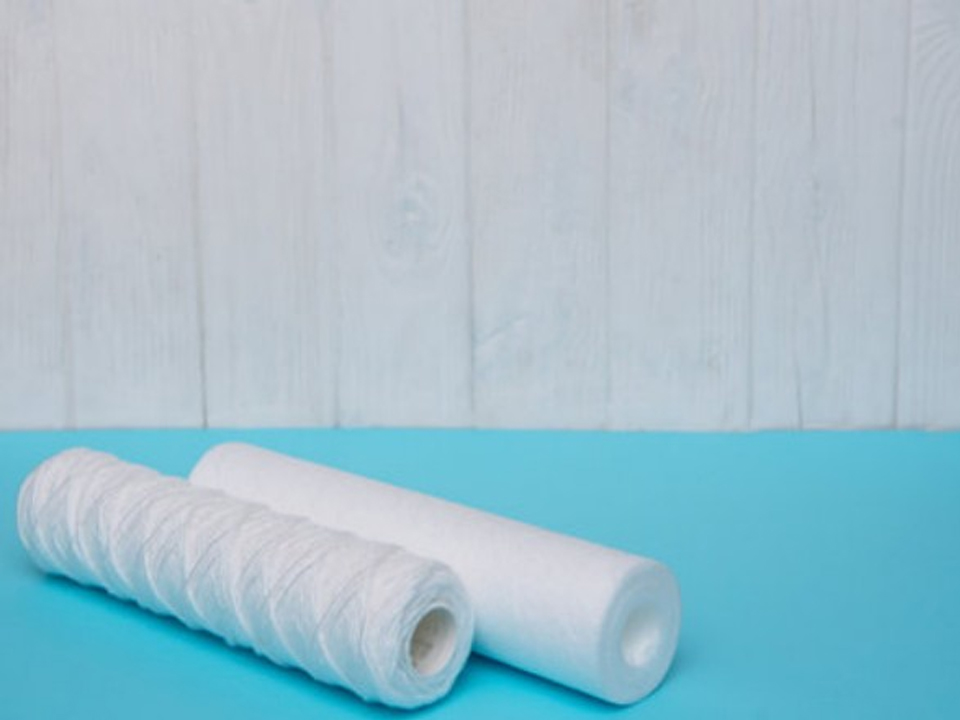

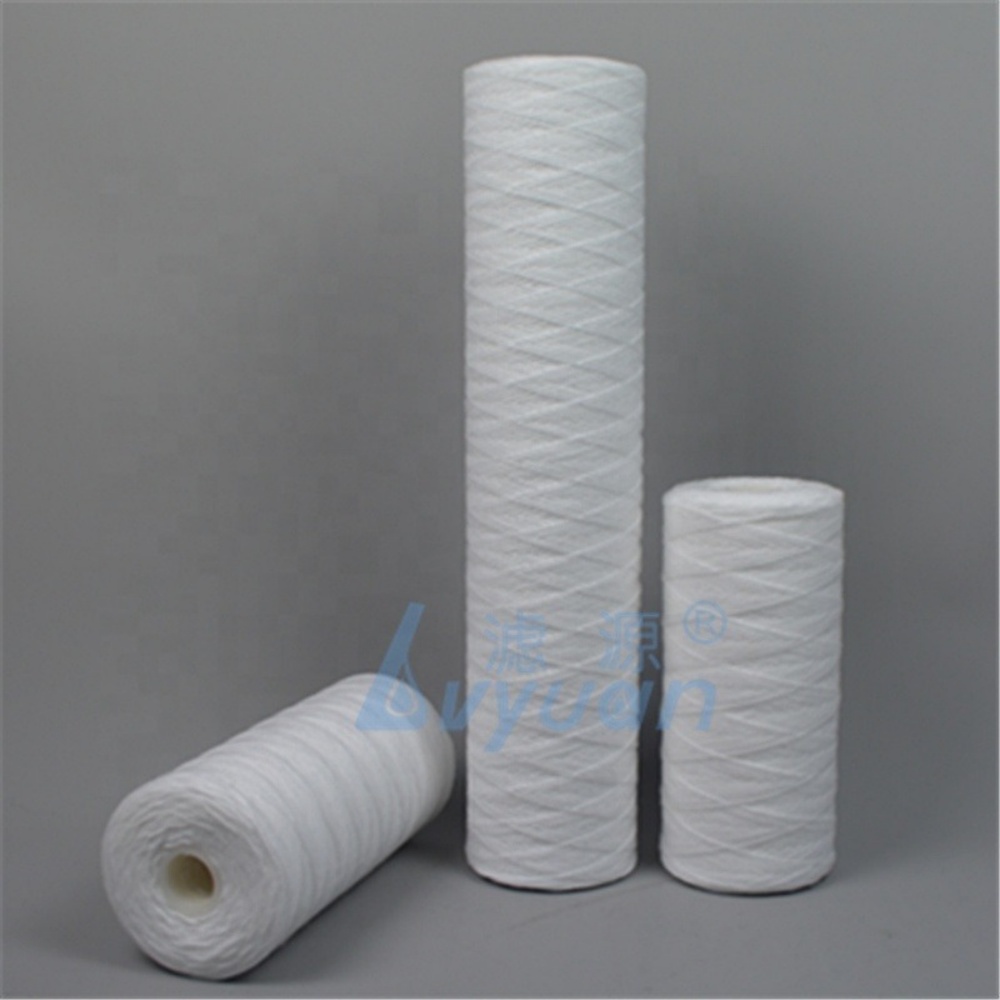

A string injury cartridge includes yarn injury around a perforated support core. The winding pattern creates converging circulation networks via the media, enabling bits to be captured throughout the deepness of the cartridge as opposed to only on its outer surface area.
This framework offers string wound cartridges 3 functional advantages:
Usual yarn products include polypropylene, cotton, glass fiber, polyester, nylon, and specialty fluoropolymers. Core materials might consist of polypropylene, stainless steel, or tin-plated steel, depending upon temperature, differential pressure, and chemical compatibility.
Polypropylene string wound filters remain the default option in numerous water-treatment systems since polypropylene has wide compatibility with acids, antacid, and numerous liquid process fluids. That does not make it universally compatible. Strong oxidizers, raised temperatures, solvents, and extractables demands can invalidate an or else cost-effective cartridge.
The tough truth is basic: “polypropylene” is a product description, not evidence of viability.
String wound cartridges operate as deepness filtering cartridges. Influent passes through progressively smaller gaps developed by the wound yarn, while suspended solids end up being entraped at different midsts according to fragment size, form, deformability, circulation rate, and the media’s winding density.
Huge fragments usually build up closer to the outer layers. Smaller sized fragments penetrate further before encountering a restricted passage or fiber crossway.
Words “usually” matters.
Particles do not act like perfectly rigid spheres. Iron oxide can crack. Organic material can compress. Repaint pigment can agglomerate. Oil can make solids follow fibers or create them to warp via the media. A solitary micron number can not describe every one of that.
Microns can mislead.
A nominal 5-micron cartridge, an outright 5-micron cartridge, and a cartridge marketed simply as “5 micron” can create materially different downstream bit matters, due to the fact that suppliers might utilize various examination cleans, challenge focus, flow rates, performance thresholds, and reporting conventions. So what does the number actually assure?
Frequently, not much.
A nominal micron ranking normally describes partial elimination of fragments around the stated dimension. An absolute score is normally linked to a mentioned effectiveness or beta proportion under specified examination conditions.
Those definitions are regularly obscured in low-priced cartridge advertising.
A purchasing group might request a “10-micron cartridge” without specifying:
That omission changes threat from the vendor to the driver.
For general clarification, a beta ratio contrasts the number of bits upstream and downstream at a defined bit size:
βx = upstream bit matter ≥ x μm ÷ downstream fragment count ≥ x μm
A β10 value of 100 methods that, under the stated examination conditions, one bit measuring 10 microns or larger passes downstream for each 100 entering the filter. That represents 99% efficiency at the specified size.
A cartridge noted only “10 μm” tells us none of this.
The majority of cartridge failures are condemned on the cartridge. Several are in fact system-design failures.
Higher circulation boosts differential pressure and can press deformable contamination deeper into the media. It might additionally reduce beneficial filter life so sharply that the smaller sized real estate chosen to conserve resources comes to be the most costly configuration over three years.
Oversizing is seldom been sorry for.
Total put on hold solids, or TSS, does not reveal particle-size circulation, solidity, form, biological activity, oil web content, or whether fragments agglomerate under changing pH.
2 water streams can both examination at 20 mg/L TSS and act completely differently inside the same cartridge.
String wound cartridges need to not come to be small clarifiers. Sand, scale flakes, welding debris, coarse matter, and heavy sludge might call for settling, testing, hydrocyclones, baskets, strainers, or bag filtering before cartridge therapy.

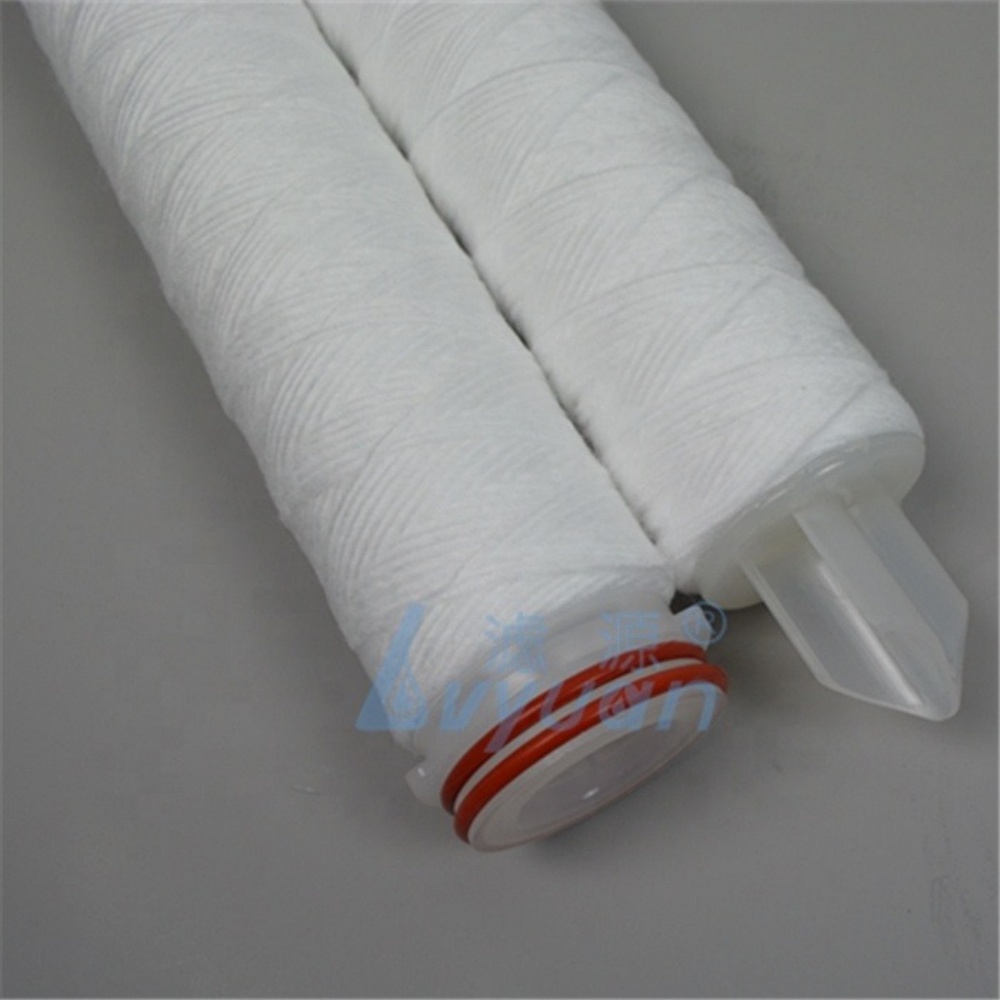

DOE cartridges depend on compression seals at both ends. SOE arrangements making use of 222 or 226 O-rings can provide even more controlled sealing, however only when the real estate adapter, end cap, O-ring product, and installment procedure match.
Bypass does not reveal itself. The differential stress might look normal while solids quietly circumnavigate the cartridge.
Changing cartridges according to the schedule overlooks actual solids loading. Running them until circulation falls down risks media contortion, bypass, transporting, and unsteady manufacturing.
Differential pressure is the better functional signal, yet the set factor must originate from confirmed system information as opposed to practice.
No cartridge architecture wins every application. Anybody declaring otherwise is marketing inventory.
| Cartridge kind | Capture mechanism | Common toughness | Usual weak point | Best-fit solution |
|---|---|---|---|---|
| String injury | Depth capture with injury thread channels | High dust capacity with mixed particle dimensions | Retention uniformity depends heavily on winding quality | General industrial pre-filtration and variable solids filling |
| Melt-blown polypropylene | Graded-density depth filtration | Regular all-polypropylene construction | Can load promptly with sticky or very concentrated solids | RO pretreatment, procedure water and chemical purification |
| Pleated cartridge | Mainly surface area capture throughout high media location | Low preliminary stress decrease and cleanable alternatives | Great pleats may blind rapidly under heavy solids filling | Low-to-moderate solids and controlled bit circulations |
| Sintered plastic | Rigid porous deepness structure | Repeatable pore framework and feasible cleansing | Higher initial cost | Air, gas, chemical and multiple-use industrial purification |
| Sintered stainless steel | Inflexible metal depth or surface area framework | Heat resistance, stamina and cleanability | Capital cost and cleansing validation | Vapor, hot liquids, aggressive service and high differential pressure |
| Permeable titanium | Rigid corrosion-resistant microporous structure | Chemical and temperature level resistance | Costly and extreme for regular sediment task | High-purity, corrosive and requiring procedure applications |
Where low stress decline and a bigger reliable area matter more than depth-loading habits, a pleated debris filter for industrial filtration may be better. The released item variety consists of numerous membrane materials, DOE and SOE connections, and ratings extending from submicron to crude debris service.
For an all-polypropylene alternative, a PP sediment filter for industrial water treatment can simplify compatibility concerns in water, plating, electronics, food-processing, and RO pretreatment systems.
When cleaning and reuse matter more than cartridge acquisition cost, a multiple-use stainless-steel sintered filter cartridge is worthy of factor to consider. Released setups consist of 10-, 20-, 30-, and 40-inch lengths for commercial water solution.
And for lower-temperature air, gas, or chemically delicate applications, an industrial sintered porous plastic filter can use a rigid pore structure without the price or weight of steel.
A severe cartridge requirements should begin with the fluid, not the catalog.
Tape greater than TSS. Acquire particle-size distribution where downstream security matters. Keep in mind noticeable fibers, corrosion, sand, carbon penalties, biological growth, oil droplets, steel hydroxides, and precipitated salts.
Chemical formulas matter right here. Calcium carbonate, CaCO SIX, behaves differently from ferric hydroxide, often represented as Fe(OH)FOUR. Silica, SiO TWO, can be unpleasant. Hydrocarbon contamination may transform polypropylene wetting and change just how down payments spread through the media.
What rests downstream?
A centrifugal pump might endure particles that would certainly nasty a spray nozzle. An ultrafiltration membrane might deal with solids differently from a reverse-osmosis element. A warm exchanger might suffer from deposition rather than immediate blockage.
The correct micron ranking starts with the tiniest prone flow or the fouling tolerance of the safeguarded devices.
For average ambient-temperature water, polypropylene thread on a polypropylene core is typically the financial standard.
Take into consideration cotton where oil absorption or particular compatibility prefers all-natural fiber. Consider glass fiber for selected high-temperature or solvent applications. Use stainless steel cores where collapse resistance, temperature level, or pressure goes beyond polymer restrictions.
But validate the total construction. Thread, core, adhesives, lubricants, end caps, and product packaging can all affect chemical and high-purity suitability.
Do not size a housing solely from a vendor’s optimum marketed flow.
Usage typical operating flow, optimal flow, liquid thickness, tidy stress decrease, anticipated solids packing, and the maximum acceptable change-out frequency. A layout that operates at 20 ° C with tidy water might behave badly with a viscous covering, concentrated brine, or cool process liquid.
Common configurations include:
O-ring chemistry additionally matters. EPDM, silicone, NBR, FKM/Viton, and PTFE-encapsulated seals do not share the same resistance to oils, oxidizers, solvents, acids, or heats.
The best string wound cartridge is not the cartridge with the finest rating. It is the cartridge that supplies the needed downstream cleanliness at the most affordable validated price per dealt with cubic meter without creating unpredictable differential stress or too much upkeep.
For several industrial-water systems, a staged setup is more sensible than one aggressively fine cartridge:
The exact series relies on the source water and equipment resistance. In some installations, two phases are wasteful. In others, a solitary 5-micron cartridge is effectively being paid to perform three work and failing at all of them.
My liked procurement examination is not a sales brochure contrast. It is a regulated trial.
Track:
The winner is the cartridge that carries out across the entire system, not the one with the most affordable billing price.
Differential stress informs the operator exactly how the hydraulic resistance of the cartridge is altering. It does not, by itself, prove purification effectiveness.
A fast pressure rise may show:
A suspiciously low stress decline can be equally as concerning. It may indicate torn media, bypass, an improperly seated cartridge, missing out on seals, or network formation.
This is why pressure gauges must be mounted quickly upstream and downstream of the cartridge housing. Digital transmitters are even much better where downtime is costly, offered drivers make use of the data instead of collecting it for decorative control panels.
Change-out pressure ought to be based upon the cartridge manufacturer’s architectural limitation, the housing ranking, available pump head, and downstream flow requirements. One Lvyuan polypropylene sediment-cartridge requirements, for example, releases an advised change-out differential of 2.1 bar, while also revealing that permitted differential stress drops as operating temperature level increases. That relationship ought to be expected: polymer strength is temperature-dependent.
String wound cartridges eliminate suspended matter. They are not global contaminant-removal tools.
They should not exist as a trusted standalone treatment for:
This distinction is regularly lost in sales language.
In 2023, EPA researchers modeled granular turned on carbon treatment for more than 400 commercially offered PFAS chemicals and approximated that 76% to 87% could be dealt with cost-effectively utilizing GAC, while the remainder needed refresher course. The appropriate lesson is not that GAC solves every PFAS problem. It is that treatment insurance claims should be linked to impurity chemistry and confirmed media performance. A debris cartridge can not be replacemented for adsorption.
String wound prefiltration may secure carbon beds, ion-exchange material, membranes, and advanced-oxidation tools. It does not replace them.
Water reuse creates an uncommonly tough pre-filtration environment because solids packing can alter with cleaning cycles, organic activity, rains, detergents, production timetables, and upstream therapy performance.
A cartridge phase must therefore rest inside a treatment train, not act to be the therapy train.
A car-wash healing system may utilize settling, oil separation, biological or physicochemical treatment, media purification, cartridge filtration, and sanitation. A portable car-wash wastewater recycling plant shows the wider system context in which cartridge filters might function as safety sprucing up stages.
The stakes are considerable. The EPA reports greater than 70 drinking-water reuse jobs serving over 8 million individuals daily, although commercial and non-potable systems run under different treatment purposes and governing frameworks.
For irrigation or landscaping reuse, a sewage reuse system for tree-watering water might call for defense versus put on hold solids that block emitters and distribution devices. Yet a low-turbidity look ought to never be perplexed with microbiological safety.
In high-temperature, destructive, pharmaceutical, catalyst-recovery, or hostile chemical service, disposable string wound media may be the incorrect platform completely. A microporous titanium filter with DOE, M20, M30, M42, 222, and 226 links might offer a more durable path where deterioration resistance and rigid building and construction justify the higher capital price.
Prior to authorizing a string injury cartridge, ask the supplier for responses handwritten:
That last concern makes providers uneasy. Excellent.
An industrial filtering program depends upon repeatability. A cartridge that carries out well during certification however adjustments thread source, core wall surface density, winding tension, or external size six months later is not the same cartridge, even when the component number continues to be unmodified.

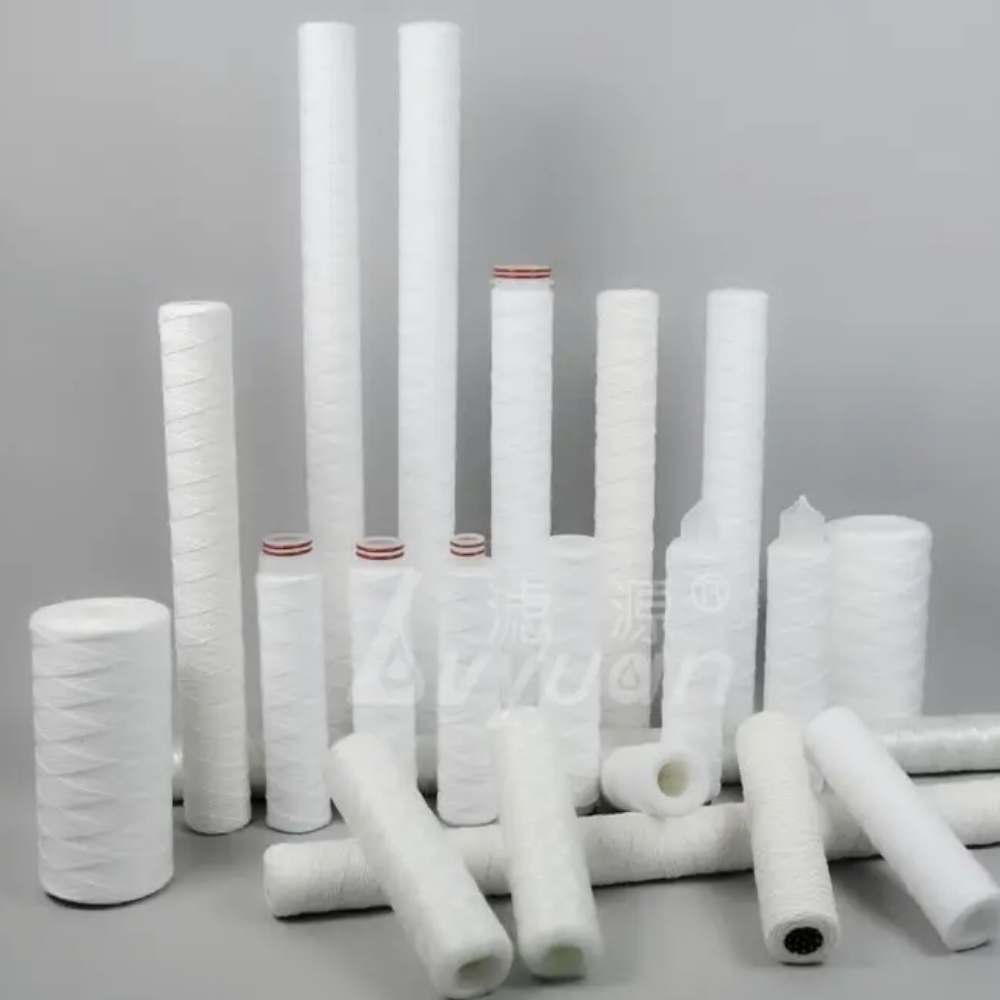

A string injury filter cartridge is a round depth-filter aspect made by winding yarn around a perforated core in a regulated pattern, creating considerably tighter flow paths that catch larger solids near the exterior and finer fragments deeper in the media prior to water reaches downstream tools.
Its major worth is dirt-holding ability throughout a broad bit circulation. It is generally utilized before RO systems, pumps, spray nozzles, warm exchangers, turned on carbon, ion exchange, and finer membrane filtering.
String wound filter cartridges function by routing fluid via overlapping yarn channels that preserve put on hold particles by interception, entrapment, connecting, and adhesion throughout the media depth, rather than accumulating all contamination on one level surface area as a conventional screen would certainly.
Efficiency modifications with flow, viscosity, solids concentration, particle shape, yarn material, winding thickness, and differential pressure. The exact same cartridge can for that reason act differently in local water, paint, layering rinse water, oil-contaminated clean water, and cooling-tower side streams.
The best micron ranking is the coarsest cartridge that constantly shields the downstream procedure, because unnecessarily fine media often raises pressure decline, shortens life span, raises cartridge consumption, and creates upkeep work without creating a measurable enhancement in final product or devices reliability.
A staged 50-to-10-micron plan might outmatch a solitary 5-micron cartridge under heavy solids loading. Pilot testing ought to validate bit decrease, treated quantity, differential-pressure behavior, and downstream fouling.
Polypropylene string injury filters are chemically resistant to many liquid acids, antacid, salts, and water-treatment chemicals, yet compatibility must be validated versus the actual focus, temperature, exposure time, oxidizing stamina, thread ingredients, core product, end-cap building and construction, and securing elastomer utilized in the set up cartridge.
Focused oxidizers, fragrant hydrocarbons, chlorinated solvents, high temperatures, and combined chemical streams might require another polymer or a metallic filter. Common compatibility charts ought to be dealt with as screening devices, not warranties.
String wound cartridges should be changed when differential stress reaches a verified change-out limitation, called for flow can no more be preserved, downstream particle counts rise, product quality changes, or the cartridge gets to a hygiene- or process-based service limitation established for the application.
Schedule replacement alone is weak control unless solids filling is highly stable. Tape-record first stress, last pressure, running hours, processed volume, circulation, and noticeable cartridge problem for every change-out.
String wound cartridges are better when the application compensates deep solids filling, tolerance of blended fragment dimensions, material customization, and reduced unit cost, while melt-blown cartridges are typically better when consistent all-polypropylene building and construction, graded-density production, cleaner handling, and repeatable high-volume production are the leading demands.
Neither format is automatically superior. A plant test utilizing equal flow, equivalent measurements, the same micron cases, and measured downstream particle counts is the only comparison worth relying on.
A string injury cartridge can be a reliable, affordable component in commercial pre-filtration systems. But it should be treated as engineered process equipment, not a non reusable commodity chosen from a micron-rating dropdown.
Send the vendor your fluid chemistry, operating temperature, normal and peak circulation, pollutant profile, housing dimensions, connection kind, target fragment removal, and permitted stress drop.
Then need testable answers.
