A plate pack can lose thermal performance long previously any person sees an alarming outlet temperature level, since suspended corrosion, welding particles, sand, fibers, precipitated minerals, and organic issue quietly restrict networks while drivers make up with even more pump head, chillier energy water, or longer production cycles.
Why wait for the exchanger to end up being the filter?
A properly crafted plate warmth exchanger filter intercepts solids before they get to the plates. However there is a difficult reality right here: setting up a stainless real estate does not immediately create an excellent purification system. The real estate is only the stress boundary. The cartridge, flow circulation, seal design, micron ranking, differential-pressure allowance, and maintenance procedure identify whether the installment safeguards anything.
I have a blunt operating guideline: if nobody can mention the tidy differential stress, incurable differential stress, impurity size distribution, and needed exchanger flow, the filter has not been engineered. It has actually just been purchased.
Plate warm exchangers produce high heat-transfer coefficients by forcing fluid with small, corrugated flows. Those passages produce turbulence and provide considerable area, however they leave little resistance for stringy particles, agglomerated deterioration items, or bits big sufficient to bridge surrounding channels.
The damages typically appears in phases:
That is the noticeable sequence. The surprise sequence is even worse: manufacturing quality wanders, utility intake increases, and maintenance teams blame the exchanger even though the contamination entered from elsewhere.
The United State Department of Energy states that fouling and scaling develop an insulating buildup on heat-transfer surfaces, boosting the power chillers call for to remove warmth. Its advice additionally keeps in mind that purification can reduce put on hold solids and the corrosion items that act as nucleation websites for mineral scale.
A warm exchanger filtering system is outstanding at regulating put on hold contamination. It can catch pipe range, rust flakes, sand, catalyst penalties, gasket fragments, fibers, tank sediment, and various other distinct fragments.
It can not eliminate everything.
Liquified calcium ions, Ca ² ⁺, and bicarbonate, HCO ₃ ⁻, pass through regular mechanical filters. Under appropriate temperature level and pH problems, they might still form calcium carbonate, CaCO ₃, on the plates. Chloride ions can still strike inappropriate stainless alloys. And a cartridge alone will certainly not remove well established biofilm.
So we require to divide four issues that acquiring departments consistently swelling with each other as “fouling”:
| Fouling system | Regular material | Can mechanical filtering help? | Extra control needed |
|---|---|---|---|
| Particulate fouling | Sand, Fe two O four corrosion, fibers, container sediment | Yes– directly | Correct micron rating and circulation capacity |
| Crystallization scaling | CaCO FIVE, Mg(OH)₂, silica down payments | Partially– gets rid of seed fragments | Softening, antiscalant, pH and temperature control |
| Organic fouling | Microorganisms, algae, extracellular polymeric issue | Partly– lowers suspended biomass | Sanitization, biocide strategy or thermal control |
| Rust deposition | Iron oxides and steel fragments | Yes– catches released solids | Products option and water-chemistry control |
| Process-product deposition | Healthy protein, oil, polymer or crystallized product | Sometimes | Temperature level, rate, cleaning and process control |
Purification issues. It is not magic.
A 2024 H2Teesside environmental-permit entry made the same difference in practical design language: the task suggested regulating water rate to restrict deposition, making use of particles filters where heat-exchanger blocking was a risk, and checking cooling-water chemistry to reduce chemical treatment. That is a system-level approach, not a cartridge-only sales pitch.

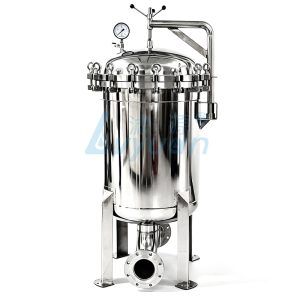

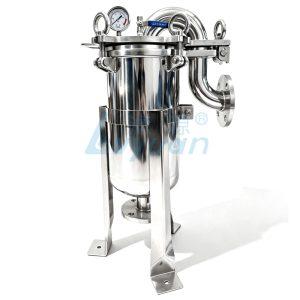

Stainless filter housings are commonly picked where polymer housings can not give the essential stress rating, temperature level tolerance, hygienic building, impact resistance, or compatibility with cleansing treatments.
However “stainless” is not a total requirements.
At minimum, the purchaser ought to specify:
SS304 might suffice for numerous treated-water and moderate commercial solutions. SS316L is often the safer starting point when chloride direct exposure, aggressive cleansing chemicals, or sanitary welding demands are entailed. Yet neither quality is untouchable. Chemistry wins eventually.

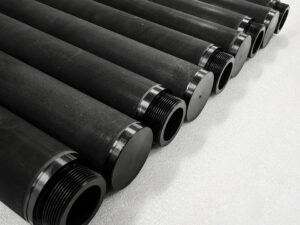

For high-temperature or repeatedly cleaned up applications, a stainless steel powder-sintered filter cartridge system may use far better mechanical strength and reusability than non reusable polymer media. Lvyuan’s released sintered-cartridge array checklists small options from 1 to 200 µm and numerous seal products, though every operating factor still needs application-specific verification.
For presented elimination– rugged particles first, finer bits later– a multi-stage stainless cartridge purification system can divide the dust load throughout multiple aspects instead of requiring one fine cartridge to take in whatever. The referenced configuration supports one to eight tailored phases and released purification ratings from 1 to 100 µm.
There is no universally best filter.
The best filter for a plate heat exchanger is the coarsest tool that regularly prevents hazardous fragments from going into or connecting the plate networks while maintaining required circulation throughout an economically acceptable service interval.
As well rugged, and destructive solids travel through.
Too fine, and the cartridge loads swiftly, stress loss climbs, pumps relocate far from their effective operating factor, and drivers at some point bypass the filter. I would rather see a well-instrumented 25 µm system that continues to be online than an impressive-looking 1 µm setup that is bypassed after every dirty set.
Make use of these selection bands as beginning points, not global specs:
| Filter innovation | A measure filtering band | Finest matched to | Key weakness |
|---|---|---|---|
| Basket or momentary strainer | 100– 1,000 µm | Startup particles, bolts, gasket items, large corrosion flakes | Restricted control of fine sediment |
| Bag filter | 10– 200 µm | High dirt loading and variable industrial fluids | Small efficiency varies by bag construction |
| Pleated cartridge | 0.5– 50 µm | Fine protection with high media area | Non reusable media price and collapse danger |
| Sintered stainless cartridge | 1– 200 µm | Hot, aggressive or cleanable service | Greater first cost and hard regrowth if blinded |
| Membrane cartridge | 0.1– 1 µm | Last polishing and high-purity fluid | Generally too much for routine exchanger protection |
| Duplex filter or filter | Application-specific | Continual procedures calling for on the internet changeover | A lot more shutoffs, room and resources expense |
A pleated filter cartridge for fluid filtration can provide considerably more surface than an ordinary cylindrical display. That area matters when the feed consists of penalty, fairly low-concentration particles and the plant needs longer intervals between changeouts.
For high-purity polishing, a 0.45 µm Nylon N66 membrane layer cartridge is available in numerous lengths and adaptor styles. Yet making use of a 0.45 µm membrane layer as the first line of defence versus raw cooling water would generally be expensive theater. Released specifications for this cartridge family members consist of lengths from 5 to 60 inches, 215/222/226/ fin connections, and numerous membrane materials.
Great media belongs after crude protection. Always.
Matching the real estate link to the pipe dimension is not hydraulic sizing.
A 2-inch nozzle does not guarantee that a real estate can pass the required flow at an appropriate differential pressure. The engineering team must account for liquid viscosity, temperature, solids concentration, cartridge area, clean-media stress loss, filling practices, piping losses, and the pump’s readily available head.
I start with a pressure-drop budget:
ΔP filter = inlet stress − electrical outlet pressure
That budget must cover:
The terminal limitation should be based upon the reduced of three numbers: the cartridge producer’s maximum differential pressure, the housing or seal limitation, and the procedure limit past which exchanger flow can no longer be preserved.
That distinction issues. A cartridge might survive 0.30 MPa while the procedure loses required flow at 0.08 MPa.
For RO pretreatment, desalination, or another pressure-sensitive service, a high-pressure SS304 liquid filter housing should be checked versus style stress, surge pressure, link rating, closure style, rust direct exposure, and the chosen cartridge’s collapse stamina– not simply described as “high stress.”
A useful real-world reference appears in the Welborne Garden Village heat-network study. Its recommended structure links defined a maximum 3 ° C PHE technique temperature level, a maximum 80 kPa secondary-side exchanger pressure decline, flow-measurement factors, and purification to shield both plate warmth exchangers and shutoffs from fouling. Those numbers reveal why filter stress loss can not be thought about in isolation: every kilopascal consumed upstream impacts the full hydraulic budget plan.
The filter needs to normally be mounted before home plate heat exchanger on every circuit lugging purposeful contamination. In a liquid-to-liquid exchanger, that might mean protecting both sides instead of thinking one loophole is permanently tidy.
Bad installations are remarkably foreseeable.
The housing is placed straight above electric equipment. There is no drainpipe. The air vent discharges towards the professional. Scales are mounted on only one side. Isolation valves leave no room to eliminate the cartridge. And the filter is positioned after the equipment it is allegedly safeguarding.
A defensible arrangement includes:
For constant manufacturing, make use of a duplex filter or parallel real estates. A basic bypass around a single housing typically ends up being a permanent unfiltered course after the first urgent changeout.
And include startup security. New pipework is rarely tidy, regardless of what the professional’s handover folder states.
Calendar-based replacement is convenient yet weak.
A cartridge can be tired in 4 hours after tank maintenance and stay virtually clean for 4 months under steady feed problems. The filter does not understand what day it is.
Videotape at least:
The clean standard issues because stress readings without circulation are uncertain. A lower differential stress could mean a tidy cartridge– or lowered procedure flow, media tear, cartridge collapse, an unsuccessful seal, or an open bypass.
Watch for an unexpected stress decline. Operators commemorate it. I examine it.
A consistent rise usually suggests loading. An unexpected decrease may indicate bypass, media damage, incorrect seats, or instrumentation failing. Favorable cartridge securing is as a result greater than a hygienic information; it prevents fragment migration around the component when differential stress surges. Lvyuan’s stainless single-cartridge real estate paperwork explains positive sealing, 10/20/30/ 40-inch cartridge compatibility, SS304 or SS316L building and construction, and published operating-pressure choices of 0.8 or 1.0 MPa.
The market’s documents is usually much more honest than its advertising.
In October 2024, the H2Teesside job’s Finest Readily available Strategies evaluation clearly combined particles filters with water-velocity control and chemistry surveillance. Designers responsible for a big industrial facility did not treat the filter as a separated accessory; they treated it as one layer in a broader fouling-control system.
A 2023 United State Department of Energy peer-review presentation involving Oak Ridge National Laboratory and Argonne National Laboratory also consisted of the review and layout of low-fouling heat-exchanger gadgets for wastewater heat healing. Wastewater warmth recovery is ruthless: the thermal possibility is appealing, however solids and organic contamination can eliminate the financial situation when maintainability is ignored.
And the Welborne heat-network layout linked purification straight to quantifiable thermal and hydraulic performance: a 3 ° C approach-temperature target and an 80 kPa exchanger pressure-drop ceiling. That is the right order of reasoning– define efficiency, allot hydraulic losses, then pick tools.
The lesson appears. Plate heat exchanger defense is not an item category. It is an operating method.
A plate warmth exchanger filter is an upstream liquid-filtration assembly that gets rid of put on hold solids before they get in narrow plate networks, minimizing blockage, particle deposition, increasing pressure decline, and early cleansing; it typically contains a pressure-rated real estate, replaceable or cleanable media, seals, vents, drains, and differential-pressure tracking.
The filter is mounted on the exchanger inlet of any circuit that can bring destructive contamination. Depending upon the application, it might utilize a basket, bag, pleated cartridge, deepness cartridge, membrane layer, or sintered stainless component.
The most effective micron score is the largest opening that reliably captures the particles with the ability of linking or transferring inside the exchanger while protecting design flow, acceptable clean pressure decline, and sensible service life; it has to be selected from particle-size data, plate-channel geometry, procedure tolerance, and the cartridge supplier’s ranked effectiveness.
Do not choose 5 µm just due to the fact that it appears safer than 25 µm. Beginning with fluid analysis, exchanger geometry and the appropriate pressure-drop spending plan. Where contamination differs extensively, use staged filtering instead of one exceedingly great component.
Stainless-steel filter real estates are liked when the process needs stress stamina, temperature resistance, cleanability, sanitary building and construction, or chemical compatibility past usual polymer housings, however the grade, weld high quality, gasket material, surface area coating, stress ranking, and rust allocation still have to match the real liquid and cleaning chemicals.
SS304 and SS316L are not compatible in every solution. Chlorides, oxidizers, low pH, cleaning temperature level and stagnant zones ought to be reviewed before the real estate product is authorized.
A filter should be changed or cleaned when differential pressure gets to the validated incurable limitation, circulation falls listed below the exchanger’s operating demand, product top quality drifts, or assessment discloses bypass or media damage; calendar-based replacement alone is weak technique since contaminant loading can change sharply between batches, periods, and water sources.
Record the clean stress drop after every modification. Trend stress versus circulation, not time alone, and check out unforeseen stress decreases as seriously as boosts.
A stainless filter housing can lower particle fouling however can not get rid of dissolved hardness ions, stop every biofilm, reduce the effects of corrosive chlorides, or right bad rate and temperature control; complete plate heat exchanger protection combines mechanical filtration with water chemistry, sanitation, instrumentation, flushing, and operating self-control.
Where CaCO ₃ range, microbiological development, oil deposition or item condensation dominates, filtering needs to sustain– not change– the pertinent chemical and procedure controls.
Do not start with a housing brochure.
Start with the liquid: flow price, temperature, thickness, pressure, solids concentration, particle-size distribution, chemistry and cleaning method. After that define the exchanger’s allowable pressure loss and fouling resistance. Only after those numbers are understood needs to anybody select SS304 versus SS316L, 10 versus 40 inches, pleated versus sintered media, or 5 versus 50 µm.
Send your operating circulation, liquid make-up, temperature level, style stress, target micron score and plate heat exchanger information to Lvyuan for a stainless filter housing and cartridge configuration developed around the actual process– not a generic pipe-size suit.
