| item | details |
|---|---|
| applicable industries | Hotels, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops |
| place of origin | Guangdong, China |
| brand name | LvYuan/OEM |
| marketing type | New Product 2020 |
| video outgoing-inspection | Provided |
| after warranty service | Video technical support |
| after-sales service provided | Video technical support |
| local service location | none |
| showroom location | none |
| machinery test report | Not Available |
| warranty | 1 Year |
| warranty of core components | 1 Year |
| material | paper carton; Polypropylene or PVDF, PTFE, PES, N66 |
| surface | Polypropylene |
| micron rating | 0.1, 0.45, 0.5, 0.68, 0.8, 1, 2–60 µm |
| size | normal carton 53×32×32 cm; 5″, 10″, 20″, 30″, 40″ or customized |
| weight | case by case |
| power | NA |
| color | White |
| quality | Excellent, food grade |
| inner diameter | 32mm, 35mm |
| outer diameter | 68mm, 70mm |
| interface | flat type, 215, 222, 226 |
| core size | core, or without core |
| core components | Electronic part if any |
| supply ability | 5000 Piece/Pieces per Day |

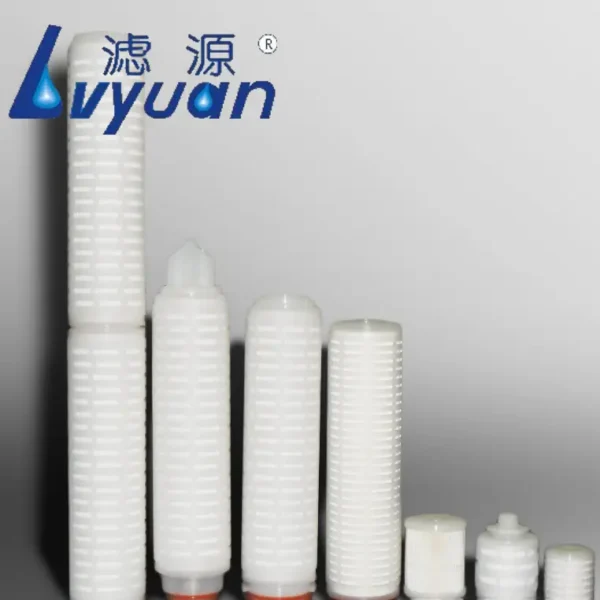

PES Pleated Filter Cartridge/precision flow meter water sensor
Product Introduction
The PP cartridge uses pleated PP fibre membrane as filtration media.
The PP cartridge is and advanced fixed intensive filter and available in a wide range of retention ratings from 0.1um to 60um. The pore size is not affected by the vibration of feeding pressure. Due to its unique low differential pressure, high flow volume, excellent filtration and attracted many customers
specification
Competitive Advantages
1.Well and High Quality Control ,
2.Prompt Delivery ,
3.Customer’s Design and Logo are Welcome ,
4.Earth-friendly Products ,
5.Low pressure drop, long service life
6.Full range of removal ratings
7. Graded pore density for high dirt holding capacity
8.Excellent chemical compatibility.
Suitable for filtering organic solvents,acid bases
Features:
1. The membrane stack consists of PP super fine fiber membrane and imported deflector layer and possesses great quantity of taking in pollutants.
2. Extensive applicability
3. Great flow, small resistance, great quantity of taking in pollutants, and long use life
4. Adopting the hot welding technique without binder and not carrying in any chemical pollutants
5. Each Pharmaceutical Grade filter cartridge has been washed by injection water; Each Electronic Grade filter cartridge has been washed by ultra pure water.
Application:
1. Electronic industry: Chemical products and pure water
2. Security filter for reverse osmosis
3. Food & beverage industry: Mineral water, wines and fruit juice etc
4. Medicine industry: Drug liquid, gases etc
5. Chemical industry: Organic solvent etc
6. Petroleum industry: Oil-field flooding
7. Fine filtration for variety of gas
8. Much finer pre-filtration
Benefit Summary
1.universal chemical compatibility, large flow volume, low differential pressure and long life.
2.wide range of retention ratings to meet various filtrations
3.application of thermal-bonding technique ,firm and no pollution to products
4.clean in common ways and sterilize with sterilizing cabinet and steam
| Length | 5”, 10” ,20” , 30” , 40” |
| Precision | 0.1, 0.22, 0.45, 1, 5, 10, 20,25, 30, 50, 60 |
| Filtration precision | 0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 |
| Effective filtration area | 0.40-0.7 |
| Max. Operating pressure | 042Mpa25°C |
| Max. Operating temperature | 88°C, 0.28Mpa; 60°C, 0.42Mpa |
| Sterilizing temperature | 121°C 30min |
| Spear type |  |
| 215 type |  |
| 226 type |  |
| Plate type |  |
Filter membrane material
| Filter membrane material | Application |
| PP | 1.Electronic industry: reverse osmosis water System
pre-filtration, deionized water system pre-filtration 2.Food manufacturer: filtration of beverage, beer and mineral water 3.Chemical plant: filtration of organic solvent and ink. 4.Pharmaceutical industry: filtration of pharmaceuticals, biologicals serum products, compressed air and gas 5.others: filtration of plating solution, process fluids, photoresist and magnetic media.
|
| PTFE | |
| PES | |
| N66 | |
| Carbon fiber |
