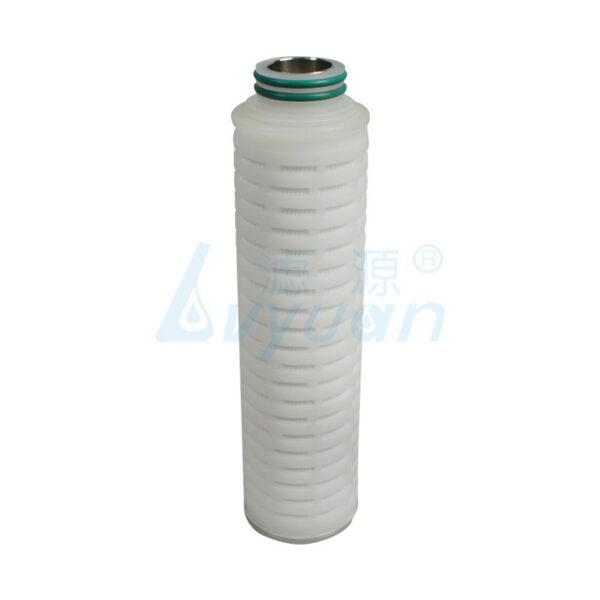

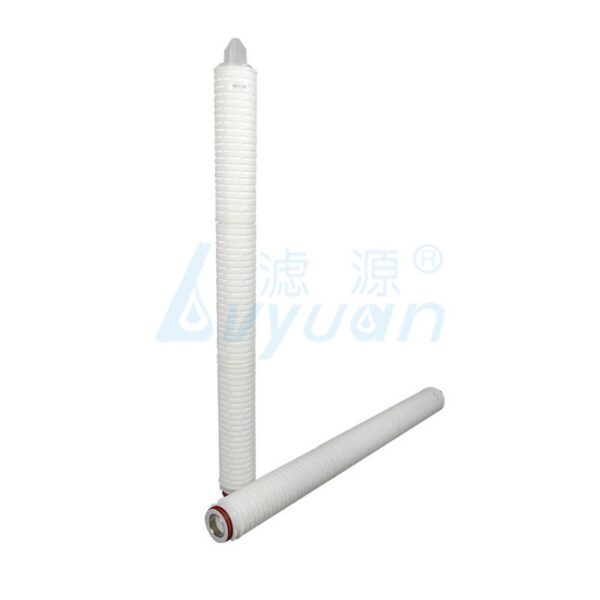

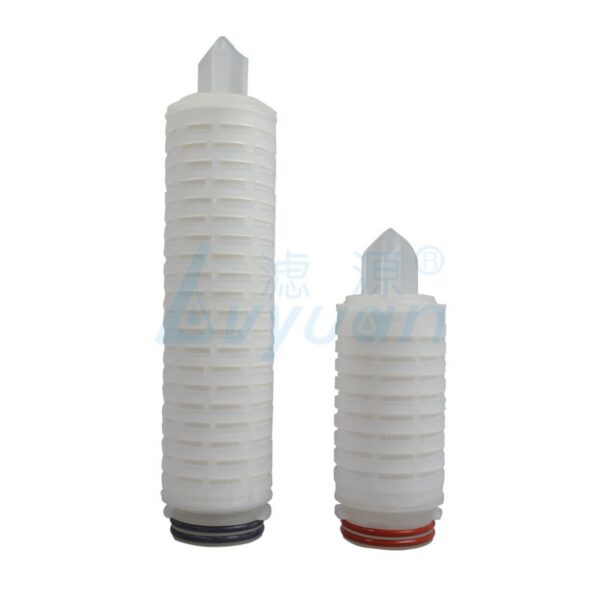

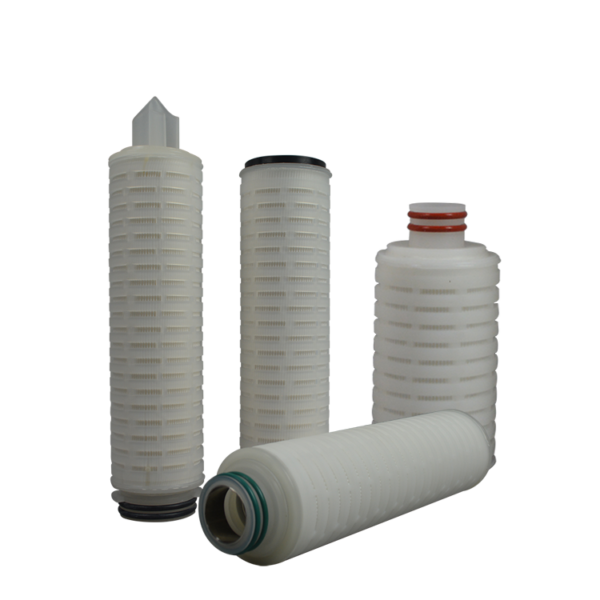

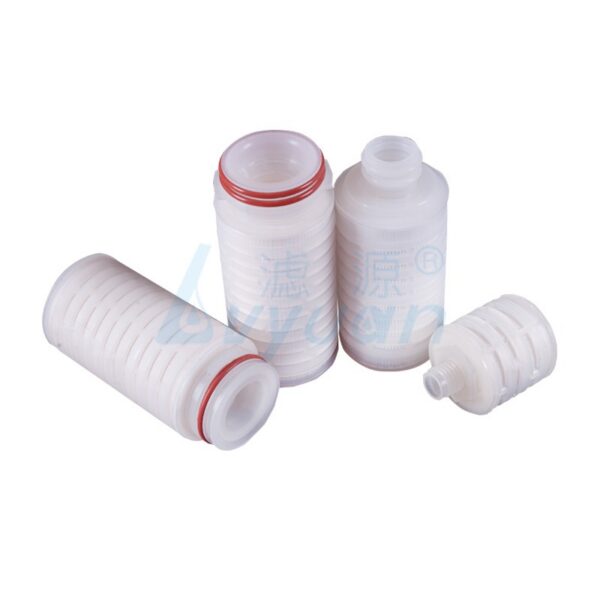

30 inch Nylon N66 membrane pleated water filter cartridge suppliers

Start Port:	Guangzhou
Production Capacity:	500 units/Month
Place of Origin:	Guanddong, China
Payment:	T/T, Western Union, Alibaba Trade Assurance, paypal
MOQ:	10pcs
Model:	LY-PL-N66
Delivery Time:	Within 7 days after full payment.
Certification:	SGS
Brand:	OEM/Lvyuan

The N6 pleated filter cartridge is constructed of Nylon 6 media and non-woven support materials. Adapters are thermally welded with media without using any glue, not any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity. Strict production environment and best assures the security of filtration. The Nylon pleated filter cartridge or Nylon membrane pleated cartridge filter uses high purity grade of Nylon 66 membranes into non-woven polyester material media. Mostly for applications for the final stage filtration.

Product Feature

◪ High dirt-holding capacity and long service life.
◪ Nylon membrane is not necessary pre-wetting due to its hydrophilic.
◪ The pore diameter of evenly distributed, good filtration effect.
◪ Excellent chemical compatibility, Compatible with most of sanitary reagents, including up to 50% H2O2 and up to 1.6% bleach(800PPmNaClo).
◪ No fiber releasing, completely adhered to standards of the pharmaceutical industry.

Product Parameter

Product Name	30 inch Nylon N66 membrane pleated filter element with 226 adaptor (LY-PL-N66)
Filter media	Nylon(N66 )
Support	PP/Polypropylene
Core/End cap	PP/Polypropylene
Seal material	Silicone/EPDM/VITON/PTFE/NBR/TEFLON
Outer diameter	2.7” (69mm)
Length	5”, 9.75”, 10”, 20”, 30”, 40”, Customized
End cap	215/222/226/FIN/DOE/SS
Filtration area	≥0.6m²
Max.operating temperature	≤ 49℃
Micron rating(μm)	0.2, 0.45, 0.65, 1
