| Start Port: | Guangzhou |
|---|---|
| Production Capacity: | 400 units/Month |
| Place of Origin: | Guangdong, China |
| Payment: | T/T, Alibaba Trade Assurance, paypal |
| MOQ: | 10pcs |
| Delivery Time: | In 7 to 15 working days |
| Certification: | SGS, ISO 9001 |
| Brand: | OEM/Lvyuan |
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.
◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.

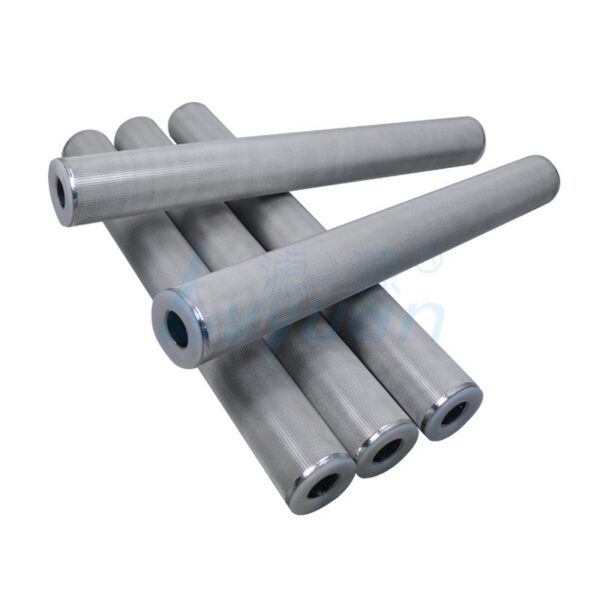

1. Plain cylindrical design SS wiremesh filter cartridge.

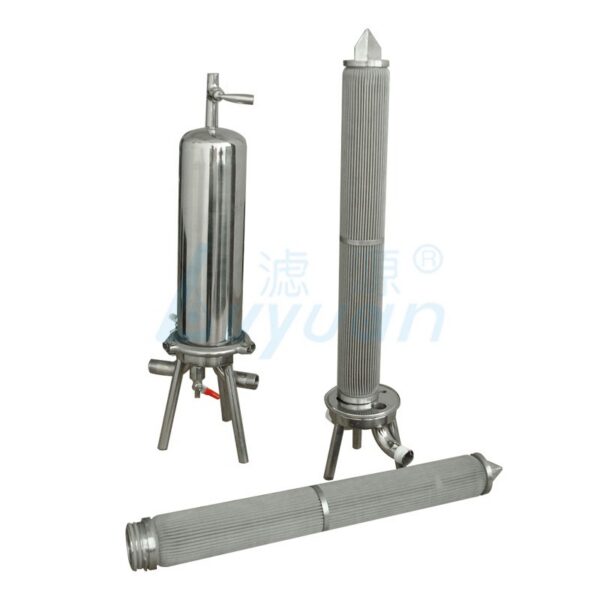

2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |

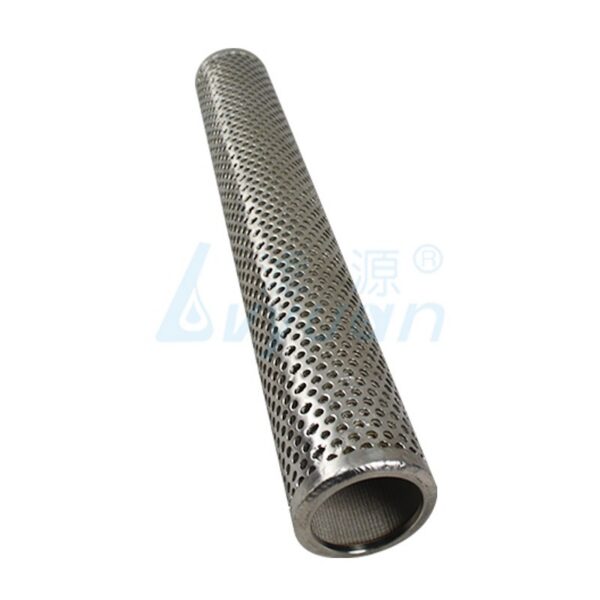

| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10″ cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
