Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
Not due to the fact that the part is made complex on paper, yet due to the fact that a 12 mm permeable plastic plug, disc, vent, muffler, sparger, wick, restrictor, or reservoir filter can quietly decide whether a $40,000 analyzer, dosing pump, compressor module, medical subsystem, or water-treatment cartridge acts like a machine or like a service warranty insurance claim generator.
I’ll state the out of favor thing first: most OEMs do not under-spec sintered permeable plastic filters because they do not have engineers. They under-spec them because buying, tooling, QA, and item management all want the filter to be “just an element.” Yet it is not. It is a flow-control device, a contamination barrier, a stress aspect, a chemical-contact surface area, and in some cases a governing migraine wearing the outfit of an inexpensive plastic part.
So what should you actually define? And what should you contradict?
Sintered porous plastic filters are crafted purification parts made by bonding plastic powder particles under warmth and stress, developing a controlled porous structure for air, gas, or fluid flow. In OEM applications, they are used when the filter must be compact, repeatable, chemically compatible, and mechanically integrated right into a bigger tools platform.
That seems clean.
It is not.
The dirty part is tolerance. A magazine component may claim “40 micron,” yet the actual questions are: ordinary pore dimension or maximum pore dimension? Air leaks in the structure at what stress? Wet-out behavior with what liquid? Lot-to-lot density variant? Was the component sintered from HDPE, UHMWPE, PP, PTFE, PVDF, or a blended powder nobody intends to discuss after the NDA is signed?
I’ve seen OEM groups stress over motor brand name, PCB covering, and valve reaction time, after that approve permeable plastic filters with a one-line drawing note: “Porous filter, 20 µm, white.” That is not a specification. That is a wager.
Sintered porous plastic filters carry out bit retention, circulation constraint, venting, diffusion, wicking, sparging, silencing, and fluid circulation depending on geometry and material. Unlike woven mesh or pleated media, the pore network is three-dimensional, which gives the component depth-loading behavior and foreseeable stress decrease when appropriately produced.
The value is not glamour. It is integration.
A sintered polyethylene filter aspect can be formed or pressed into tiny discs, poles, cups, cones, sheets, plugs, or facility OEM plastic filter components. That matters in tools where the filter is not a changeable cartridge but part of the machine architecture.
Normal OEM uses consist of:
Air consumption vents for pumps and pneumatically-driven controls.
Fluid purification inside application systems, research laboratory analyzers, and ink-handling modules.
Gas diffusion in water treatment, fermentation, and environmental devices.
Reservoir vents for hydraulic, chemical, and diagnostic systems.
Flow restrictors in small-bore fluidic gadgets.
Silencers for pneumatically-driven exhaust ports.
Protection filters upstream of sensing units, solenoids, or microvalves.
And of course, sometimes the filter is there mainly to stop customers from ruining the equipment with their own liquid. That takes place greater than suppliers confess.
OEMs pick porous plastic filters when they require a self-supporting, shape-stable filter that can survive handling, assembly, vibration, and chemical exposure without a separate cage or pleat pack. They are not always the finest filters. They are commonly one of the most manufacturable filters.
That difference issues.
A pleated membrane might supply outright retention at 0.2 µm, which is why a PP/PTFE membrane pleated filter cartridge with 0.2 micron purification makes sense in sterilized, high-efficiency, or polishing solution. But also for several OEM settings up, the problem is not submicron capture. The concern is regulated air bleed, repeatable circulation, sprinkle blocking, crude fragment control, or chemical-resistant airing vent in a tiny plastic impact.
A melt-blown depth cartridge is different once more. A polypropylene melt blown deepness filter cartridge provides low-priced deepness filtering in changeable real estates, yet it is cumbersome compared to a sintered permeable plug embedded straight into devices.

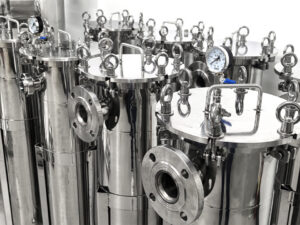

And stainless sintered metal? More powerful. Hotter. A lot more costly. A SS316 steel porous sintered filter cartridge belongs where temperature level, stress, solvents, or mechanical abuse make plastic look naive.
Product option makes a decision whether a sintered porous plastic filter ends up being a stable OEM component or a slow-motion problem.
Permeable polyethylene filters are the default workhorse since PE provides great chemical resistance, affordable, and dependable sintering behavior. UHMWPE adds abrasion resistance and toughness. PP can be valuable for higher-temperature water and broader chemical direct exposure. PTFE presses chemical resistance a lot better, but sourcing and governing examination ended up being harder. PVDF sits in the middle: harder chemically than many asset plastics, however not always the least expensive course.
Here is the candid variation:
PE is usually the commercial champion.
PP is usually the process-water compromise.
PTFE is the chemical-resistance flex.
PVDF is the serious-fluid choice when the budget enables it.
But material name alone is not enough. Ask for grade, thickness, additives, colorant system, binder condition, extractables expectations, RoHS/REACH declarations, food-contact status if relevant, and PFAS exposure statements where fluoropolymers or fluorinated ingredients get in the conversation.
The EPA’s PFAS coverage rule changed the tone of supplier conversations. The policy targets suppliers and importers of PFAS or PFAS-containing articles going back to January 1, 2011, and it requests for details such as use, manufacturing quantity, disposal, exposure, and hazard information. That does not imply every permeable plastic filter is a PFAS problem. It suggests OEMs buying PTFE, PVDF, fluorinated coverings, or secret “chemical resistant” materials need to quit approving hand-waving.
Trace it. Or pay later.
Pore size in sintered permeable plastic filters should be dealt with as a useful engineering specification, not a directory adjective. The valuable specification typically includes nominal pore size, optimum pore size, leaks in the structure, stress decline, bubble factor or honesty test method where suitable, dimensional resistance, and media thickness.
Here is where sales brochures get slippery.
“10 micron” might indicate small retention. It might imply typical pore estimate. It could mean the distributor’s internal powder quality. It may suggest what the last client requested. Unless the test method is attached, the number is decorative.
For OEMs, I like to see at the very least these worths in the illustration or approved distributor paper:
Material: HDPE, UHMWPE, PP, PTFE, PVDF, or specified blend.
Nominal pore size: for filtration language.
Maximum pore size: for defense and contamination danger.
Air movement or water flow: at a stated pressure differential.
Pressure decrease: throughout the component, not across an ideal laboratory coupon.
Measurements: OD, ID, length, monotony, wall density, or compression features.
Porosity or thickness range: to manage whole lot drift.
Cleanliness level: bits, oils, mold release, and product packaging.
Sanitation compatibility: gamma, EtO, heavy steam, or none.
Lot traceability: material set, sintering batch, evaluation data.
Why be this demanding for a plastic part that might cost cents? Since the area failing does not cost cents.
Custom sintered plastic filters are not just off-catalog shapes. They are manufacturing commitments, and every vague RFQ line ends up being a future deviation demand. Before asking for rate, OEMs need to specify the component’s operating atmosphere, purification objective, setting up technique, and recognition concern.
Do not begin with “send your finest permeable plastic filter.”
Begin with this:
What fluid calls the filter?
Is the service air, gas, water, oil, solvent, reagent, disinfectant, or organic fluid?
What temperature array will the filter see throughout operation, storage space, and cleaning?
Is the filter shielding tools, managing circulation, diffusing gas, venting pressure, or catching fragments?
Will the component be welded, press-fit, overmolded, glued, inserted, threaded, or ultrasonically installed?
What is the predicted yearly quantity: 5,000, 50,000, 500,000, or 5 million items?
What occurs if the filter clogs, fractures, loses bits, or changes stress visit 20%?
That last inquiry hurts. Good. It should.
If the solution is “the maker stops,” you need one degree of recognition. If the response is “the device dosages inaccurately,” you require an additional. If the solution is “the client, driver, or procedure set is revealed,” after that the filter is no more an informal plastic component.
OEM plastic filter parts stop working provider qualification when the customer just evaluates gold samples. Golden samples are dangerous since they prove what a supplier can make slowly, not what they can make every Tuesday at scale.
A severe qualification strategy need to include pilot lots, resin adjustment controls, process ability data, and destructive checks. Ask whether sintering temperature, dwell time, compression pressure, mold condition, powder circulation, and post-processing are managed by recorded windows or by “operator experience.”
Operator experience serves.
It is not a control strategy.
For controlled markets, the stress is increasing. FDA’s High quality Administration System Policy now aligns medical-device quality expectations with ISO 13485:2016, which implies threat monitoring, vendor controls, and style transfer discipline matter a lot more for parts that enter into ended up tools. Also outside clinical tools, the exact same reasoning uses: if the component affects efficiency, treat it like a controlled element.
The same goes for supply chain. Reuters reported in 2024 that Red Sea disruption pushed vessels around Africa’s Cape of Good Hope, producing broader port delays, higher freight rates, and blockage in Asia, including Singapore and Shanghai. OEMs learned the old lesson once again: dual-source small parts prior to the tiny part stops the whole maker.
Sintered porous plastic filters are not “much better” than every various other filter kind. They are much better when the job demands rigid geometry, small integration, moderate filtering, regulated circulation, and chemically compatible plastic building and construction.
Right here is the contrast I would put in front of an OEM designer prior to a design freeze:
| Filter Kind | Finest Use Case | Toughness | Weak point | OEM Fit |
|---|---|---|---|---|
| Sintered porous plastic filters | Vents, restrictors, diffusers, ingrained fluid or gas filters | Shape-stable, portable, personalized, good repeatability | Not optimal for ultra-fine outright purification | Superb for incorporated equipment elements |
| Permeable polyethylene filters | Air vents, water handling, analysis components, pumps | Affordable and chemically resistant | Temperature level limitations versus metal or fluoropolymers | Solid default selection |
| Pleated PP/PTFE membrane filters | Sterilized air, great fluid filtering, brightening | High surface area and fine retention | Calls for housing and even more space | Better for cartridge-based systems |
| PP melt-blown deepness filters | Pre-filtration and water therapy | Affordable deepness packing | Larger style and less incorporated | Great for changeable cartridges |
| SS316 sintered steel filters | High-pressure, high-temperature, aggressive service | Long lasting and cleanable | Higher expense and weight | Best for extreme industrial platforms |
| Turned on carbon block filters | Preference, smell, chlorine, organics adsorption | Adsorptive media feature | Not mainly a structural OEM vent/filter | Best for water-treatment cartridges |
This is why a custom triggered carbon block water filter need to not be puzzled with a sintered porous plastic filter. Carbon block has to do with adsorption and water top quality. Permeable plastic is usually concerning structure, flow, venting, diffusion, and particle control.
And when pressed air or clean and sterile air is included, the filter media is only half the system. A SS304 or SS316 stainless steel filter housing for pressed air purification can determine whether the installation is functional, cleanable, pressure-rated, and legitimate to an auditor.
To choose sintered permeable plastic filters for OEM applications, specify the liquid, filtering target, pore dimension examination method, flow rate, stress drop, material compatibility, setting up method, validation needs, and vendor change-control process prior to authorizing samples.
That is the short answer. The useful response is extra unpleasant.
Do not allow the vendor pick the pore size alone. Do not approve a sample without flow information. Do not assume “PE” implies the very same resin family permanently. Do not overlook colorants. Do decline “food quality” without the actual basis. Do not make use of PTFE or PVDF casually when the governing documents is slim. Do not allow buying replace a verified filter with an aesthetically similar less expensive component.
I have a basic rule: if the filter touches the procedure, protects the tool, or influences the pressure curve, it belongs on the controlled-component checklist.
Small part. Big take advantage of.
A weak quote is simple to spot if you know where distributors hide unpredictability.
Expect these:
“Micron rating” without test method.
No material grade or product statement.
No optimum pore size data.
No pressure-drop contour.
No whole lot traceability.
No illustration resistance evaluation.
No sample strategy past handpicked prototypes.
No conversation of weld, press-fit, sticky, or overmolding results.
No solution on extractables, additives, or cleaning.
No change-control agreement.
No manufacturing ability numbers.
No packaging cleanliness requirement.
And my personal fave: “Same as your sample.”
That sentence needs to make every OEM engineer worried. Reverse design a porous component from an utilized example is not engineering; it is commercial archaeology with an order affixed.
The most affordable porous plastic filters frequently conserve cash at the unit-price line and lose it anywhere else. In OEM devices, inadequate filtration elements develop hidden expenses through setting up scrap, irregular circulation calibration, field service telephone calls, contamination complaints, supplier sorting, emergency air cargo, and redesign.
A $0.06 conserving can be actual.
So can a $60,000 restorative action.
Rate still matters, certainly. No one in OEM sourcing earns money to appreciate premium components for emotional factors. But rate needs to be assessed after the vendor verifies repeatability, product traceability, dimensional ability, and application fit.
Much better question: what is the price of one failed great deal inside your completed devices?
The most effective permeable plastic filters for OEM applications are normally custom sintered PE or PP elements when the devices needs compact geometry, stable circulation, and moderate filtration. For harsher chemicals, fluoropolymer alternatives may be justified; for high heat or pressure, sintered steel is typically the much better design option.
My opinion?
A lot of OEMs need to start with permeable polyethylene filters unless the chemistry, temperature level, or regulative profile says otherwise. PE is monotonous, and boring is great when you are making 100,000 machines. PP is entitled to factor to consider for water, chemical, and temperature situations. PTFE should be dealt with as a costs, paperwork-heavy choice, not a default. Stainless sintered metal ought to go into the conversation when plastic is being pushed into a job it plainly resents.
Filters fall short silently at first. Then loudly.
Sintered permeable plastic filters are stiff filtering parts made by bonding plastic powder particles right into a controlled permeable framework for air, gas, or liquid circulation. OEMs use them for particle retention, venting, diffusion, flow limitation, silencing, and compact combination inside devices settings up.
They are generally made from PE, UHMWPE, PP, PTFE, or PVDF. The crucial variables are pore size, leaks in the structure, stress decline, chemical compatibility, dimensional tolerance, and sanitation. In severe OEM applications, the filter should be dealt with as a useful crafted element, not a common plastic insert.
Pick sintered permeable plastic filters by matching material, pore structure, flow rate, stress decline, geometry, chemical compatibility, and validation requirements to the real tools duty cycle. The best choice begins with the fluid, operating temperature level, contamination risk, setting up technique, and failing consequence.
For instance, permeable polyethylene filters might match air vents and water-contact parts, while PP might fit warmer liquid service. PTFE or PVDF can sustain a lot more aggressive chemical exposure. Stainless sintered steel needs to be considered when temperature, pressure, or solvent exposure surpasses plastic limits.
Porous polyethylene filters are normally far better for cost-sensitive OEM applications requiring durability, chemical resistance, and steady sintering habits, while polypropylene filters might be much better for higher-temperature water or certain chemical atmospheres. The better option depends upon fluid chemistry, running temperature, pore-size demand, and recognition burden.
PE typically wins in vents, little fluid filters, and diagnostic equipment due to the fact that it is foreseeable and economical. PP makes its location when the chemical profile or thermal demand presses past basic PE convenience. Neither material should be accepted without real flow and compatibility testing.
Sintered permeable plastic filters can replace pleated membrane layer filters just when the application needs inflexible structure, small assimilation, airing vent, diffusion, or moderate purification as opposed to ultra-fine outright retention. Pleated membrane filters remain far better for high-efficiency, sterile, or submicron filtering responsibilities.
A 0.2 µm PP/PTFE pleated membrane cartridge is built for fine filtering and high area. A sintered porous plastic filter is generally developed for form, durability, controlled circulation, and assimilation right into OEM devices. Confusing the two develops poor specs.
OEMs should specify pore dimension utilizing a specified examination method, maximum pore-size limit, small pore score, flow rate, and pressure-drop demand rather than relying upon a solitary micron number. A complete spec stops distributors from analyzing “20 µm” in different means throughout production great deals.
For vital devices, include leaks in the structure, bubble point or equal honesty data where relevant, media thickness, dimensional resistance, sanitation, product grade, and lot traceability. The goal is not just purification. The objective is repeatable tools efficiency.
Personalized sintered plastic filters are usually affordable at OEM production quantity, however tooling, recognition, product controls, and examination requirements can increase very early task cost. The real business economics rely on geometry, pore size, material type, tolerance, annual volume, sanitation requirement, and supplier quality expectations.
A low-cost get rid of uncontrolled pressure decline can end up being expensive via scrap, calibration drift, warranty insurance claims, and area failures. OEMs should compare total expense of ownership, not simply unit price.
If your tools requires sintered permeable plastic filters, permeable polyethylene filters, custom sintered plastic filters, or other OEM plastic filter elements, do not wait up until tooling is locked and the very first failure report appears.
Bring the filter discussion forward.
Share the liquid, temperature level, pressure, pore-size target, expected circulation rate, assembly technique, annual volume, and failure danger. Then contrast permeable plastic versus pleated membrane, melt-blown PP, stainless sintered steel, carbon block, and full housing alternatives prior to the style ends up being pricey to change.
Need aid matching filter media to an OEM platform? Start with the operating conditions, not the directory page.
