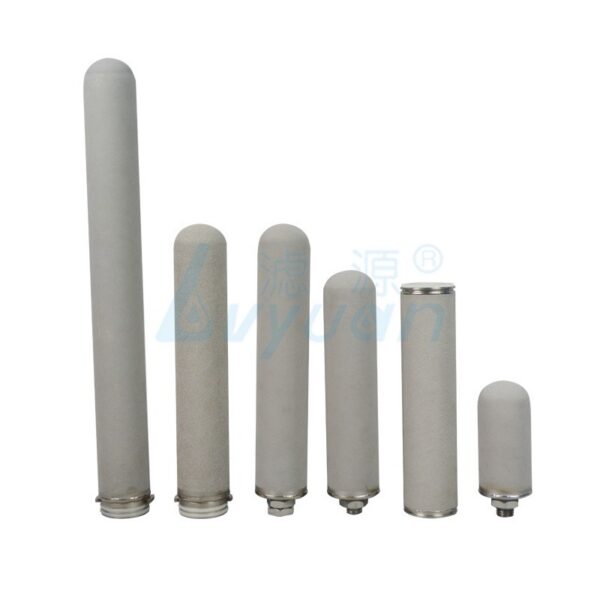

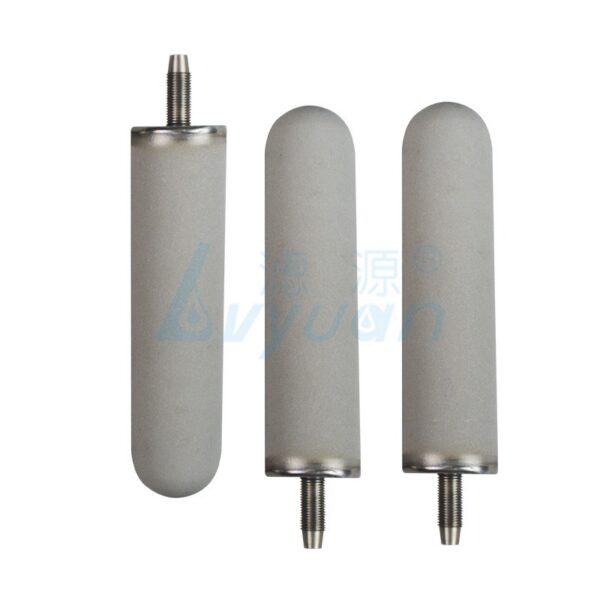

Sintered metal filters suppliers porous titanium rod filter cartridge titanium water filter

Start Port: Guangzhou
Production Capacity: 400 units/Month
Place of Origin: Guangdong, China
Payment: T/T, Alibaba Trade Assurance, paypal
MOQ: 10pcs
Model: LY-TIC
Delivery Time: In 7 to 15 working days
Certification: SGS, ISO 9001
Brand: OEM/Lvyuan
Inquiry
Share your love
Category: Tags: , , , , ,
Sintered metal filters suppliers porous titanium rod filter cartridge 5
Sintered Titanium water filter cartridge is based on pure titanium powder (99.7% or higher) as the main raw material, made through high temperature sintering process. The uniform structure, small pore density is high, the filtration resistance, good permeability. Also it has the high filtration precision, acid & alkali corrosion, high temperature resistant characteristic. It can be used for solid liquid, gas separation and purification. The service performance is excellent, but the suction filter and press-filter, it will not form secondary pollution, simple operation, it can be on-line regeneration, easy to clean, and long service life.

  Product Feature

    • ◪   Uniform structure, narrow pore size distribution, and high separation efficiency.
    • ◪   High porosity, the resistance of filtration less, and the penetration efficiency is high.
    • ◪   High temperature resistant, it can be normally used below in 280 degree.
    • ◪   Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.

◪   No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements.

  • ◪   Good mechanical performance, it can have the suction filtration and press-filtration, simple operation.
  • ◪   Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation.
  • ◪   Strong antimicrobial ability, no microbes.
  • ◪   The finished-products technology is good, the overlength of overall length can be reached to 1000mm.
  • ◪   It can be on-line regeneration, easy to clean, and long service life.

Product Parameter

Fiter Cartridge dimensions
Length 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm）
Diameter Ø22, 30, 50, 60, 70, 80, 100, 120mm
Other dimensions Customized by customer’s request.
Material of constructions
Filter media Titanium
Connector type Flat, Insert type, Thread type, Fin
End caps DOE, 215, 222, 226, M20, M30, M42 or as request.
Sealing material Silicone, NBR, EPDM, Fluoro rubber, etc
Performance
Removal rate 0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um
Porosity 28-50%
Temperature Tolerance ≦ 300℃ wet
Permeability 0.02-20L/cm2 min Pa
Maximum Operating Pressure differential 6.0 bar
Flow rate (L/H) 180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600

◆◆Pure water flow rate reference table: the initial value of 10” sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)

Micron rate (μm) 0.2 0.45 1 2 3 5 10 20 30
Flow rate (L/H) 180 200 250 280 300 350 500 800 1000
